Jloncell PVC Foam Core: Complete Guide for Marine, Drone, Wind & Industrial Applications
Learn how to choose the right PVC foam core, compare materials, and get the best solution for your composite project
· Optimized for Boats, Drones & Wind Blades
· Monthly Capacity: 15,000 m³
· Fast Delivery & Custom Solutions
Factory Strength & Quality Assurance

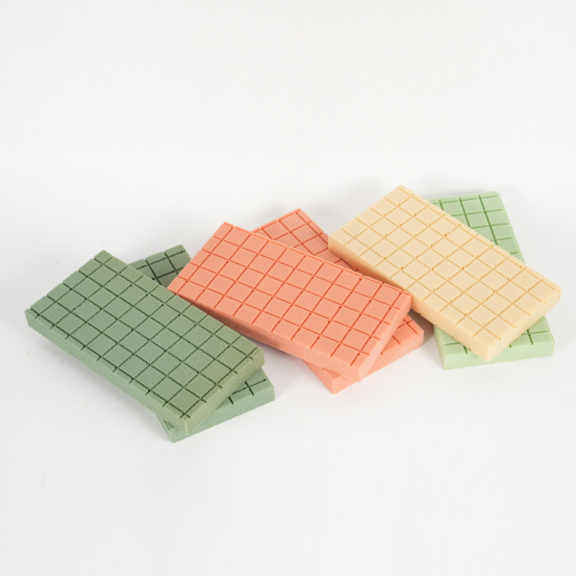

What is Jloncell PVC Foam Core
PVC foam core is a closed-cell, rigid structural foam core material widely used in composite sandwich structures, including marine foam core, drone foam, boat deck core material, and other high-performance applications. As a high-performance PVC foam core, it is manufactured from cross-linked polyvinyl chloride, offering excellent mechanical properties, lightweight structure, and long-term durability.
The PVC foam core features a uniform, closed-cell structure, providing outstanding resistance to water absorption, chemicals, and fatigue. Its high strength-to-weight ratio makes it ideal for applications like foam core boat building, marine structural foam core, and corecell foam, where lightweight and high stiffness are critical.
As a versatile structural foam core, PVC foam core is compatible with various resin systems including polyester, vinyl ester, and epoxy. It can be used in multiple manufacturing processes such as vacuum infusion (VARTM), RTM / LRTM, hand lay-up, and compression molding, making it suitable for foam core boat construction and other composite projects.
Technical Specifications of Rigid PVC Foam
| Item | Standard | Unit | Result Type | 45 | 50 | 60 | 80 | 100 | 130 | 200 | 250 | 300 |
| Density | ISO 845 | kg/m3 | Average Value | 45 | 50 | 60 | 80 | 100 | 130 | 200 | 250 | 300 |
| Density | ISO 845 | kg/m3 | Range | 40-50 | 45-55 | 54-69 | 72-90 | 90-110 | 120-150 | 180-220 | 225-275 | 270-330 |
| Compressive Strength | ISO 844:2006 | MPa | Average Value | 0.68 | 0.78 | 1.03 | 1.5 | 2.2 | 3.2 | 5.5 | 6.8 | 8.4 |
| Compressive Strength | ISO 844:2006 | MPa | Minimum Value | 0.56 | 0.69 | 0.85 | 1.25 | 1.8 | 2.8 | 4.8 | 5.8 | 7.3 |
| Compressive Modulus | ISO 844:2006 | MPa | Average Value | 48 | 63 | 90.8 | 119 | 180 | 220 | 300 | 370 | 460 |
| Compressive Modulus | ISO 844:2006 | MPa | Minimum Value | 36 | 50 | 75 | 103 | 150 | 180 | 270 | 343 | 390 |
| Shear Strength | ISO 1922:2012 | MPa | Average Value | 0.55 | 0.7 | 0.76 | 1.1 | 1.5 | 2.1 | 2.75 | 4.19 | 4.91 |
| Shear Strength | ISO 1922:2012 | MPa | Minimum Value | 0.47 | 0.6 | 0.7 | 0.9 | 1.35 | 1.9 | 2.6 | 3.52 | 4.32 |
| Shear Modulus | ISO 1922:2012 | MPa | Average Value | 16 | 20 | 23.1 | 31.5 | 40 | 55 | 85 | 98 | 129 |
| Shear Modulus | ISO 1922:2012 | MPa | Minimum Value | 14 | 16 | 20 | 26 | 33 | 45 | 68 | 86 | 108 |
| Tensile Strength | ASTM C297 | MPa | Average Value | 0.96 | 1.36 | 1.88 | 2.4 | 3.5 | 4.5 | 5.5 | 7.68 | 9.65 |
| Tensile Strength | ASTM C297 | MPa | Minimum Value | 0.83 | 1.02 | 1.7 | 2.1 | 3 | 3.5 | 4.9 | 6.24 | 8.87 |
| Tensile Modulus | ASTM C297 | MPa | Average Value | 72 | 79 | 96.2 | 125 | 180 | 210 | 300 | 342 | 408 |
| Tensile Modulus | ASTM C297 | MPa | Minimum Value | 63 | 70 | 87 | 105 | 160 | 180 | 250 | 304 | 356 |
How to Select the Right Rigid PVC Foam
| Application | Density (kg/m³) | Typical Use | Engineering Purpose / Notes |
| Marine (Boatbuilding) | 45–60 | - Small racing boats, kayaks - Superstructure of large yachts - Non-structural interior components | Designed for extreme weight reduction. Used in low-load areas to reduce overall vessel weight, improving speed and fuel efficiency. |
| 60–80 | - Hull bottom and deck of small/medium yachts and fishing boats - Sides of workboats - Secondary structures of high-speed boats | Best cost-performance range. Provides an optimal balance between weight reduction and structural strength. Most widely used density range. | |
| 80–130 | - Hull, deck, and sides of large yachts and passenger vessels - Load-bearing bulkheads - Areas supporting heavy equipment (e.g., engine foundations) | Suitable for higher load conditions. Increased density improves compressive and shear strength for larger vessels and harsher environments. | |
| 130–300 | - Critical load-bearing areas in high-performance boats - High point-load zones (mast bases, winch bases) - Local reinforcement inserts | Provides strength and stiffness close to balsa. Ideal for high-load zones while avoiding water absorption and processing issues associated with wood cores. | |
| UAV / Drone | 45–60 | - Equipment bays - Fairings | Primarily used for protection. Highly weight-sensitive applications. |
| 60–80 | - Main fuselage and arms - Fixed-wing wings / lifting surfaces | Provides a balance between lightweight and structural stiffness. ⚠ For high-speed propellers or central wing box structures, PMI foam is recommended. | |
| Wind Turbine Blades | 45–60 | - Trailing edge / aft edge - Blade tip area | Lightweight design reduces blade mass and improves energy efficiency. |
| 60–80 | - Mid shell (blade shell structure) | Provides sufficient stiffness for shell stability. | |
| 80–130 | - Main spar - Shear web | High strength and shear resistance for major load-bearing structures. | |
| — | - Blade root | Typically uses higher-strength balsa for maximum structural performance. |
PVC Foam Processing Options for Composite Manufacturing
| Scheme | Type | Description | Molding Process |
 | Flat Plate | There is no other post-processing. If you want curved surface, you can get it upon treating the flat plate by thermoforming. | Suitable for hand lay-up, compression molding and other processes of the flat plate with sandwich structure. |
 | Scrim Foam | Small squares are formed by cutting on one side of the flat plate in both directions of length and width with gluing fiberglass mesh on the other side. | Suitable for products with curved surfaces. |
 | Double Cuts | Cut both sides of the core material to the extent 55-60% of the thickness and the cutting positions are staggered. The amount of resin absorption is much less than that of scrim foam. | Suitable for the application with small curvature. |
 | Perforated Plate | Perforate holes with diameter of about 2 mm on plates. You can adjust the diameter of holes according to the thickness and density of the core material. Trapped air formed in the process of lamination can be removed from the bottom of the core material by perforating holes. Also, the resins can flow from one side of the core material to the other side. | Suitable for hand lay-up, vacuum infusion, compression molding process to improve the adhesive strength. |
 | Slotted Plate | Guide slots are set on the plate surface. Guide slots can be disposed in length or width direction on one side or both sides of the plate. The groove(s) can work as the flow path of resins and can remove the trapped air when using the resin vacuum infusion lamination process. | Suitable for vacuum infusion and compression molding process to produce products with large area. |
 | Slotted Perforated Plate | 20mm. On the basis of slotted plates, perforate holes with a diameter of 2 mm in the slots that the spacing between every two is 20 mm in the length or the width direction of the plate. | It has features of the two above core materials, suitable for vacuum infusion, compression molding and vacuum bagging process to produce large-scale products. |
How Structural PVC Foam Is Made
PVC Foam Core vs Other Core Materials
| Item | PVC Foam Core ★ | PET Foam Core | PMI Foam Core |
| Mechanical Properties | Medium | Lower (at same density) | Excellent (Best) |
| Shear Strength | Medium | Relatively low | Excellent |
| Impact Resistance | Good | Relatively low | Excellent |
| Temperature Resistance | ~ 120 °C | ~ 140 °C | ≥160 °C |
| Flame Retardant Properties | Naturally flame retardant | Requires flame retardant additives | Limited (requires modification) |
| Water Absorption | Low | Low | Higher (hydrophilic) |
| Environmental Performance | Moderate | Environmentally friendly, recyclable | Moderate |
| Process Compatibility | Hand lay-up, vacuum infusion, RTM | Hand lay-up, vacuum infusion, RTM | High-temperature processes (RTM, autoclave) |
| Typical Applications | Yachts, boats, wind blades, industrial structures | Marine interiors, rail transit, cost-sensitive structures | Aerospace, high-performance marine, UAVs |
| Price Level | Medium | Lowest | Highest (＞2× PVC) |
Why Choose Jloncell PVC Foam Core
Stable Quality from Reliable PVC Foam Core Manufacture
JLON PVC foam core is produced under strict quality control to ensure uniform density, consistent mechanical properties, and reliable performance in large-scale production. This includes waterproof foam core, PVC core, and pvc foam core options.
Wide Density Range of PVC Foam Core
JLON offers a full range of PVC foam core densities from low to high, allowing customers to select the most suitable structural foam core for applications such as foam core boat building materials, drone foam, or marine foam core.
Excellent Mechanical Performance of PVC Foam Core
Strong Process Compatibility of PVC Foam Core
Customization Capability for PVC Foam Core
Competitive Price and Reliable Supply of PVC Foam Core
FAQ of Jloncell PVC Foam Core
-
What is PVC Foam Core?
PVC foam core is a high-performance structural foam with a cross-linked molecular structure. It is lightweight yet strong. JLON offers a variety of densities and thicknesses suitable for composite sandwich structures.
-
What are the main properties of PVC foam core?
JLON PVC foam core provides high specific strength, high specific stiffness, excellent compression, shear, and bending performance. It is water-resistant, corrosion-resistant, and compatible with various resins, including epoxy and polyester.
-
Can density and thickness be customized?
JLON offers PVC foam core with densities ranging from 40 to 200 kg/m³ and thicknesses from 3 to 50 mm, allowing tailored solutions for different composite material designs.
-
What manufacturing processes is it suitable for?
JLON PVC foam core is suitable for hand lay-up, vacuum bagging, RTM/VARTM, and other composite processes. It can be easily cut, laminated, or thermoformed.
-
How does PVC foam core compare to other core materials?
Compared to PU, PET, or PMI cores, JLON PVC foam core is more water-resistant, chemically stable, cost-effective, and easier to process.
-
What are the common applications?
JLON PVC foam core is widely used in marine sandwich structures, transportation interiors, architectural panels, and composite wind turbine blades.
-
Can it withstand high temperatures?
JLON PVC foam core typically tolerates temperatures from -40°C to 80°C. Short-term exposure up to 100°C is possible, but long-term high-temperature use is not recommended.
-
How to choose the right density?
Select JLON PVC foam core density based on structural requirements:
Low density (40–80 kg/m³): lightweight decorative panels
Medium density (80–130 kg/m³): general sandwich structures
High density (130–250 kg/m³): high-strength composite structures
-
Is it environmentally friendly?
JLON PVC foam core is recyclable and safe for everyday use. It does not release harmful substances under normal conditions, though proper handling is needed during combustion.
-
How to order JLON PVC foam core?
Contact JLON’s sales team to request samples, quotes, and customized solutions in various densities, thicknesses, and sizes, ensuring your composite project requirements are met.
