Building a lighter RV or caravan starts with selecting the right panel materials. Floors, furniture, partitions, walls and ceilings all contribute to vehicle weight, but each component has different requirements for stiffness, durability, insulation and fastening.
PP honeycomb core, also known as polypropylene honeycomb core, offers a lightweight option for composite sandwich construction. Combined with suitable facings, it can help manufacturers reduce panel weight while achieving the performance required for selected applications.
However, successful material selection involves more than comparing core density. Bonding quality, concentrated loads, service temperature and insulation requirements also influence whether a honeycomb sandwich panel is suitable.
JLON supplies PP honeycomb core materials for lightweight composite panels. This guide explains their benefits, practical limitations and selection considerations for RV and caravan manufacturers.
What Is PP Honeycomb Core?
PP honeycomb core is a cellular material made from polypropylene. Its hollow structure uses relatively little material across the panel volume, making it useful where low weight is a priority.
In a sandwich panel, the honeycomb sits between two outer skins. These may include fiberglass composites, compatible thermoplastic composites or other engineered facings. The core and skins work together to provide the required panel performance.
How a Honeycomb Sandwich Panel Works
The skins and core perform different functions. During bending, the skins primarily carry tensile and compressive stresses, while the core transfers shear and maintains the distance between them.
Separating the skins can increase bending stiffness without the weight of a solid board of equivalent thickness. However, performance depends on the complete construction, including skin thickness, core properties and bond integrity.
A bare honeycomb sheet should therefore not be assessed as though it were a finished load-bearing panel. The assembled sandwich structure is the relevant product for evaluating stiffness and load capacity.
Common PP Honeycomb Product Formats

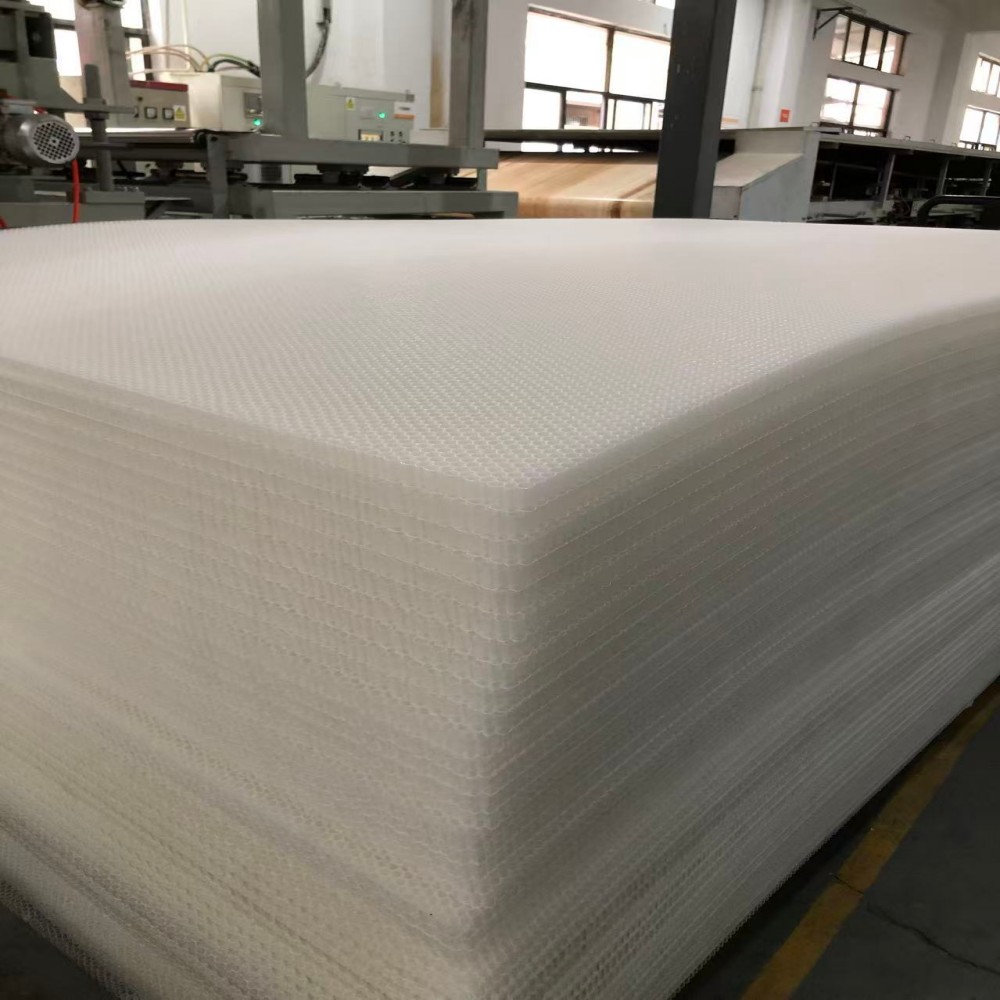

Bare PP Honeycomb Core
Bare core is supplied without a bonding fabric or finished structural facing. It suits manufacturers with a validated process for joining their chosen skins to polypropylene.
Its suitability depends on the bonding or fusion method available in production. Buyers should confirm the required surface preparation and processing conditions before selecting this format.

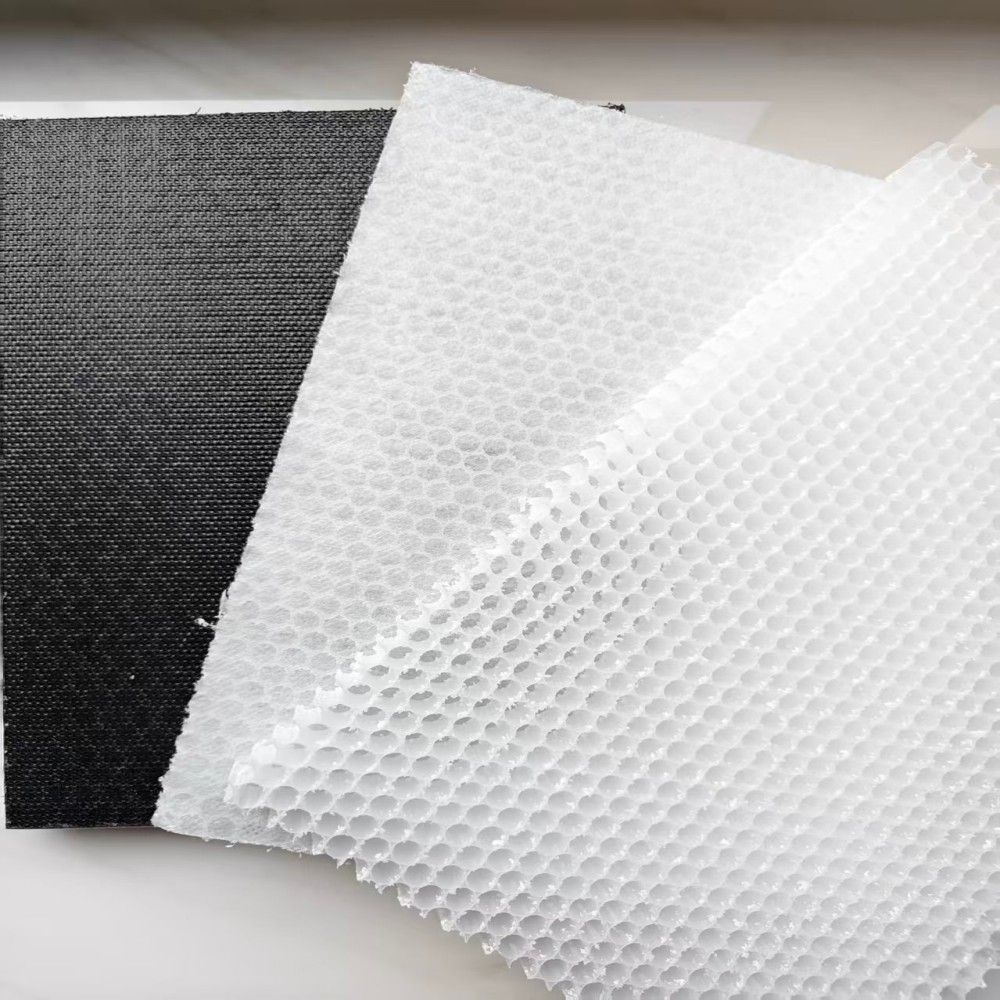

Nonwoven-Faced PP Honeycomb Core
Nonwoven-faced PP honeycomb incorporates a surface layer that provides a bonding interface for subsequent lamination. Certain constructions also include a barrier film to limit resin or adhesive entry into the cells.
The surface specification should match the production process. Nonwoven facing alone does not establish compatibility with every adhesive, resin or vacuum-processing method.

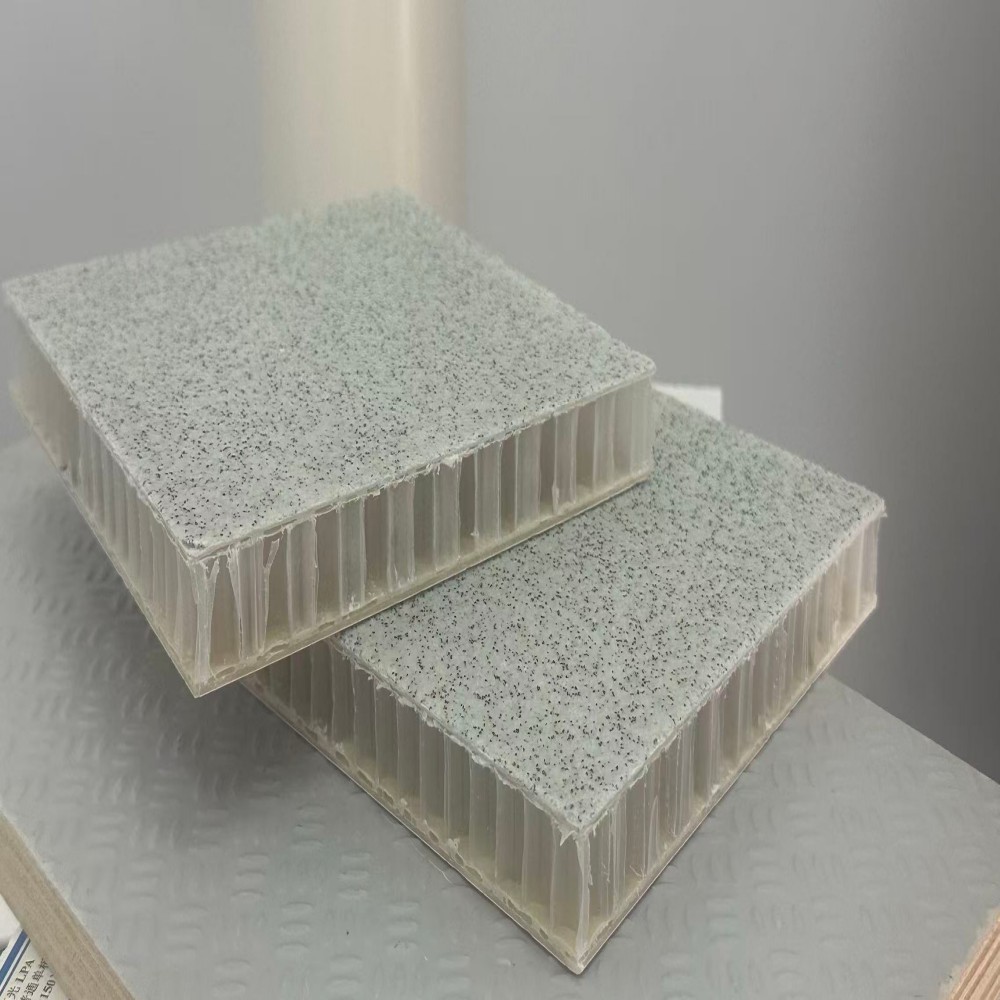

Finished Honeycomb Composite Panels
Finished panels combine the core with structural skins and, where required, decorative or protective surfaces. JLON’s product range includes bare core, nonwoven-faced core and CFRT-faced honeycomb boards.
Choosing between core sheets and finished panels depends on the manufacturer’s equipment, processing experience and preferred level of production integration.
Benefits of PP Honeycomb Core for RV and Caravan Panels
Lower Weight Across Multiple Components
The main attraction of polypropylene honeycomb is its potential to reduce panel mass. Replacing an appropriately selected solid-board construction with a designed honeycomb sandwich can create weight savings across cabinet doors, partitions, bed platforms and other components.
The useful comparison is the weight of the finished assembly, including skins, adhesive, inserts, edging and hardware. Comparing a bare core with a finished plywood panel gives an incomplete picture.
An Illustrative Core Weight Calculation
A nominal 20 mm core with a density of 80 kg/m³ has a calculated core mass of 1.6 kg/m². This is obtained by multiplying its thickness in metres, 0.020 m, by its density.
The calculation excludes skins, bonding layers and additional surface materials not included in the stated density. It provides a starting point for estimating weight rather than a finished-panel specification.
Useful Stiffness for Lightweight Panels
A well-designed honeycomb sandwich can provide useful bending stiffness for broad, flat components. This is valuable for furniture panels and interior partitions where manufacturers want substantial panel thickness without excessive weight.
The design must account for unsupported spans, edge support and acceptable deflection. Increasing core thickness may improve bending stiffness, but it does not automatically solve weak skins, inadequate bonding or local indentation.
Panel thickness and facing construction should therefore be selected together.
Moisture-Resistant Core Material
Polypropylene has low moisture absorption and does not rot like wood. These characteristics make PP honeycomb attractive for components exposed to humidity or occasional moisture.
However, moisture resistance of the core does not make the assembled panel waterproof. Water can enter through unsealed edges, damaged skins, joints or installation holes and remain inside the cellular structure.
Sealing details and adhesive durability remain important, particularly around bathrooms, kitchens and exterior openings. A moisture-resistant core supports durability, but reliable panel design must address every potential entry point.
Flexible Surface and Finish Choices
Honeycomb sandwich construction allows the structural core and visible surface to be selected separately. A furniture panel may need a decorative laminate, while a utility compartment may require a washable facing.
Other components may use fiberglass skins or compatible thermoplastic reinforcement. This flexibility helps manufacturers adapt panel appearance and performance to different locations within a vehicle.
The facing, adhesive and core surface must still be evaluated together to establish a reliable construction.
Where Can PP Honeycomb Panels Be Used in an RV?
Furniture, Cabinet Doors and Partitions
Interior furniture is a practical area for evaluating lightweight honeycomb panels. Potential components include cupboard doors, table tops, storage dividers and bathroom partitions.
These parts can contribute substantial cumulative weight across a vehicle, even when each individual component is relatively small. Furniture applications also allow manufacturers to develop experience with panel finishing and attachment details.
Plan Hardware Locations Before Production
Hinges, catches, handles and brackets should have defined attachment zones. An insert or reinforced edge can provide a suitable fixing location without requiring a dense construction throughout the entire panel.
Planning these details before cutting and laminating helps avoid improvised reinforcement during assembly.
Floors and Bed Platforms
PP honeycomb sandwich panels may be considered for floors and bed platforms when their construction is designed for the expected loads.
Assess distributed loading, concentrated loading, support spacing and repeated use. A floor that performs well under an evenly distributed test load may still need reinforcement beneath furniture feet or equipment mounts.
Check the Complete Load Path
Review how loads move from the panel surface through the skins, core, supports and vehicle structure. Heavy equipment and critical anchorage points require dedicated engineering rather than reliance on the honeycomb sheet alone.
The attachment to the supporting structure is as important as the panel itself.
Wall, Ceiling and Roof Panels
Lightweight honeycomb panels are also candidates for selected wall and ceiling constructions. Exterior applications require a broader assessment covering weather exposure, sealing, thermal movement and insulation.
JLON includes RV and caravan panels among its PP honeycomb transportation applications. Selecting a core for a particular wall or roof nevertheless requires validation of the proposed complete panel and its installation details.
Limitations of PP Honeycomb Core
Thermal Insulation Must Be Evaluated Separately
A lightweight cellular structure should not automatically be treated as a high-performance insulation system.
For an RV intended for cold-weather use, request thermal data for the proposed panel construction. Assess the effects of skins, framing, joints and openings as well as the core itself.
If thermal insulation is the main design requirement, compare the complete honeycomb solution with purpose-designed insulating panel systems.
Define the Insulation Target First
Specify the required panel thermal performance before choosing the core. This prevents a lightweight material selection from creating additional insulation requirements later in development.
A panel that works well for an interior partition may require a different construction when used in an exterior wall.
Local Loads Require Reinforcement
Honeycomb sandwich panels can behave differently under distributed loads and small contact areas.
A narrow furniture foot, tightened bolt or unsupported hinge can concentrate force into a limited area. Depending on the construction, this may cause skin indentation, core crushing or damage around the attachment.
Use Designed Inserts and Load Spreaders
Possible solutions include local inserts, bonded reinforcement, edge members and load-spreading plates. Their dimensions and materials should be established through calculation and testing.
Do not assume that screws driven directly into unreinforced honeycomb will provide reliable long-term retention. Fastener performance must be evaluated in the actual panel construction.
Bonding Requires Process Control
Untreated polypropylene is difficult to bond reliably with many conventional adhesives. Surface preparation, bonding fabrics or a compatible thermal joining process may therefore be necessary.
For adhesive-bonded panels, control adhesive coverage, assembly pressure, curing conditions and surface cleanliness. Trial panels should be evaluated before production quantities are ordered.
Distinguish Lamination Grades from Infusion Grades
A core suitable for adhesive bonding is not automatically suitable for vacuum infusion.
Infusion-specific PP honeycomb products use engineered surface constructions to control resin entry into the cells. Uncontrolled resin ingress increases weight and consumption, undermining the purpose of the lightweight core.
Confirm the intended process when requesting a PP honeycomb sheet specification.
Temperature and Sustained Loading Need Review
The selected core, skins and bonding system each have service-temperature limits. Processing temperature and short-duration exposure should also be distinguished from continuous operating conditions.
Request grade-specific data rather than applying a temperature claim from another honeycomb formulation.
For continuously loaded components, include long-term deflection and creep in the qualification plan. A short-term strength result alone does not establish performance over years of service.
Fire Performance Is Grade- and Assembly-Specific
Standard PP honeycomb should not be described as fireproof. Flame-retardant grades exist, but their documented ratings apply to defined products and test conditions.
A core-level result does not automatically establish the performance of a finished RV panel containing skins, adhesives and decorative layers.
Request evidence relevant to the actual construction and the customer’s specified requirements.
Finished-Panel Recycling Can Be More Complex
Polypropylene is a recyclable thermoplastic, but a finished sandwich panel may contain several different materials.
Thermoset fiberglass skins, adhesives, coatings and inserts can affect separation and recycling options. Assess the proposed assembly and available recovery route before making broad environmental claims.
Material recyclability and practical recycling of a finished component should be considered separately.
How to Select PP Honeycomb Core for Caravan Panels
Start with the Component Requirements
Define the application before comparing product prices. A cabinet door and a floor panel may use similar-looking honeycomb, yet require very different constructions.
Record panel dimensions, support conditions, target weight, service environment and attachment locations. These details provide a meaningful basis for discussing specifications with a PP honeycomb core supplier.
Review Core Thickness, Density and Cell Structure
Thickness, density and cell geometry influence performance and processing, but none should be considered in isolation.
Ask for relevant compressive and shear properties, thickness tolerances and surface specifications. Confirm whether published values represent typical results or guaranteed minimums.
Avoid assuming that the highest-density grade is always the most suitable option. The objective is a balanced panel design that meets the application requirements without unnecessary weight.
Match the Core to the Production Method
Establish whether the panel will be adhesive-bonded, laminated, infused or thermally consolidated.
Then confirm compatibility among the core surface, skin material and joining system. Production equipment, curing time and quality-control capability should influence material selection from the beginning.
A material that performs well in a laboratory trial must also be practical to process consistently on the intended production line.
Validate a Representative Finished Panel
Qualification should reproduce the actual construction, including reinforcement, edges and fasteners.
Useful checks may include bending, local indentation, bond integrity, fastener retention and environmental exposure. Select tests according to the component’s function and expected failure risks.
Small material coupons can support initial screening, while larger assemblies may be needed to assess joints, supports and full-span deflection.
Comparing PP Honeycomb with Other Panel Options
Compare Finished Assemblies
PP honeycomb, plywood and foam-core sandwiches should be compared against the same application requirements.
Review finished weight, stiffness, insulation, attachment design and manufacturing compatibility. Include skins, reinforcement, hardware and installation details in the comparison.
This approach avoids selecting a core based on an attractive individual property that does not translate into better overall panel performance.
Consider Total Installed Cost
A lower core price does not necessarily produce the lowest installed cost. Adhesive consumption, processing time, trimming, reinforcement and assembly labour all influence the final result.
Equally, a lighter panel may offer limited benefit if extensive reinforcement is needed for its intended use. The most suitable solution balances weight, performance and production efficiency.
Discuss Your RV Panel Requirements with JLON
Selecting PP honeycomb core for RV and caravan panels works best when the specification follows the application.
When contacting JLON, describe the intended component, panel dimensions, required thickness and target finished weight. Include the proposed skins, manufacturing process, support spacing and fixing locations.
Temperature exposure, moisture conditions, fire requirements and insulation targets should also be identified. Trial quantities and estimated production demand help define the next steps for sampling and quotation.
JLON can discuss PP honeycomb core options for your lightweight composite panel project. A clear application brief provides the basis for selecting a starting specification and evaluating representative samples.
The right polypropylene honeycomb solution combines a lightweight core with compatible skins, reliable joining and properly designed attachments. Assessing these elements together helps turn material weight savings into practical RV and caravan panel performance.
