Medical imaging equipment requires materials that combine lightweight construction, reliable structural support, and minimal interference with imaging systems. For X-ray tables, CT scanner tabletops, and other diagnostic equipment, selecting the right core material is essential to balancing mechanical performance and imaging requirements.
PMI foam core (Polymethacrylimide foam) is a high-performance, closed-cell structural foam used in advanced composite sandwich structures. Its low density, mechanical properties, and thermal stability make it a suitable candidate for lightweight medical imaging table designs.
Unlike conventional solid structures, composite panels incorporating PMI foam can provide high bending stiffness while reducing overall weight. When combined with appropriately selected composite face sheets, PMI foam may also contribute to low X-ray attenuation.
JLON supplies PMI foam core materials for medical imaging equipment, aerospace, UAVs, and other high-performance composite applications, with multiple density options, machining services, and technical support for different manufacturing requirements.
This article explains how PMI foam contributes to X-ray transparency, structural performance, and lightweight medical imaging table construction, as well as the key considerations when selecting the appropriate material.
Why Is PMI Foam Used in Medical Imaging Tables?
Medical imaging tables must support patients while allowing diagnostic equipment to perform accurately. Their structural requirements differ from those of ordinary industrial panels.
Requirements of Medical Imaging Table Materials
An X-ray or CT imaging table generally requires several material properties.
Low X-ray attenuation: The material should minimize unnecessary obstruction of the imaging beam and support consistent imaging performance.
High structural stiffness: The tabletop must limit excessive bending and deflection under patient loads.
Lightweight construction: Reducing structural weight can improve the efficiency of movable equipment components.
Dimensional stability: The structure should maintain its geometry and positioning during normal operation.
Reliable composite bonding: Effective bonding between the foam core and composite skins is essential for structural integrity.
Manufacturing compatibility: The core must tolerate the temperature and pressure involved in the selected composite fabrication process.
Traditional solid materials can provide structural strength but may increase weight or X-ray attenuation.
Composite sandwich panels offer an alternative by combining thin, relatively stiff face sheets with a lightweight core.
The Role of PMI Foam in Sandwich Structures
In a sandwich panel, PMI foam separates the outer composite skins and supports them against local deformation.
The face sheets carry much of the bending stress, while the foam core contributes to shear resistance, maintains the distance between the skins, and helps stabilize the structure.
This arrangement can improve bending stiffness relative to the weight of the panel.
Why Core Material Selection Matters
The core must provide sufficient mechanical performance without adding unnecessary mass.
A core with insufficient strength may experience compression damage or excessive shear deformation. An unnecessarily dense core can increase weight and X-ray attenuation.
For medical imaging tables, selecting PMI foam therefore involves balancing density, compressive strength, shear properties, core thickness, and imaging performance.
X-Ray Transparency: Why It Matters for Medical Imaging Equipment
X-ray transparency, also called radiolucency, describes a material's ability to transmit X-rays with relatively low attenuation.
This characteristic is particularly important for components positioned in the imaging beam path.
Understanding X-Ray Attenuation
When X-rays pass through a material, some photons are absorbed or scattered.
The degree of attenuation depends on the material's chemical composition, density, thickness, X-ray energy, internal structure, and any additional materials located within the beam path.
Materials with relatively low density and suitable elemental composition can offer lower attenuation than many dense structural materials.
However, no structural material is completely invisible to X-rays.
How PMI Foam Supports Low X-Ray Attenuation
PMI foam has a lightweight, closed-cell polymer structure.
Because much of its volume consists of gas-filled cells, it contains considerably less solid material per unit volume than a solid polymer component.
This makes PMI foam an attractive candidate for radiolucent sandwich structures.
For example, a PMI foam core with a nominal density of 52 kg/m³ has substantially less mass per unit volume than a solid structural polymer.
Its low density can help reduce the core's contribution to X-ray attenuation.
Nevertheless, actual attenuation must be verified under the intended imaging conditions.
Does PMI Foam Density Affect X-Ray Transparency?
Yes. Density is an important consideration when comparing PMI foam grades of similar composition and thickness.
A higher-density grade generally contains more polymer material per unit volume, which can increase X-ray attenuation.
However, lower density also generally means reduced mechanical strength and stiffness.
Consequently, the lowest-density foam is not automatically the best choice.
Engineers must select a density that satisfies both structural requirements and the imaging system's attenuation limits.
X-Ray Transparency Depends on the Entire Composite Panel
One important consideration is that PMI foam is normally only one component of a medical imaging tabletop.
A typical sandwich panel consists of composite face sheets, adhesive or resin bonding layers, a PMI foam core, local reinforcement or mounting inserts, and surface coatings.
Each component contributes to the final X-ray attenuation.
Carbon fiber reinforced composite skins are commonly considered for radiolucent structures because they can provide high stiffness with relatively low weight.
However, the fiber architecture, laminate thickness, resin system, and any metallic components must all be evaluated.
Selecting a low-attenuation PMI foam core does not guarantee that the complete tabletop will meet a specific imaging requirement.
Understanding Aluminum Equivalence
Aluminum equivalence is one method used to characterize the X-ray attenuation of materials and assemblies.
It expresses attenuation relative to a specified thickness of aluminum under defined test conditions.
For medical imaging tabletop development, aluminum-equivalent measurements may help engineers compare candidate structures.
What Information Is Needed for Attenuation Testing?
Relevant information includes X-ray beam quality, operating voltage, filtration, specimen thickness, and the test method.
Measurements should reflect the actual composite construction whenever possible.
JLON recommends confirming the target attenuation requirements with the medical equipment manufacturer before finalizing the PMI foam grade and sandwich structure.
Structural Performance of PMI Foam Core in Medical Imaging Tables
Although X-ray transparency is important, structural performance is equally critical.
Medical imaging tables must support the intended loads while controlling bending, vibration, and permanent deformation.
Compressive Strength and Local Load Resistance
Compressive strength describes the foam core's resistance to crushing under applied pressure.
For sandwich panels, this property is important in areas experiencing concentrated loads or pressure transferred through the face sheets.
A higher-density PMI foam generally provides greater compressive strength.
JLON offers different PMI foam densities to accommodate varying structural requirements.
Shear Strength and Bending Performance
In sandwich construction, the face sheets primarily resist bending stresses, while the core transfers shear forces and helps maintain panel geometry.
Insufficient core shear stiffness can increase overall panel deflection.
Insufficient shear strength may contribute to structural failure under high loads.
Therefore, both shear strength and shear modulus should be considered when designing medical imaging table panels.
PMI Foam Mechanical Properties
The following values are representative of the JLON F Series PMI foam product range.
Property | F32 | F52 | F75 | F110 |
Nominal density (kg/m³) | 32 | 52 | 75 | 110 |
Compressive strength (MPa) | 0.43 | 1.03 | 1.84 | 3.31 |
Compressive modulus (MPa) | 12.5 | 42.4 | 76.3 | 118.6 |
Shear strength (MPa) | 0.42 | 0.78 | 1.33 | 2.56 |
Shear modulus (MPa) | 11.6 | 21.3 | 37.3 | 53.4 |
Note: The values are JLON F Series product data and should be verified against the latest technical datasheets. They are not medical-device qualification results.
These data illustrate how mechanical performance generally increases with density.
Why Higher Strength Is Not Always Better
Using the highest-density PMI foam may improve the core's load-bearing capability, but it also increases material weight.
For medical imaging applications, this additional mass may offer little benefit if the panel already meets its structural requirements.
An optimized design focuses on achieving the required performance with an appropriate safety margin rather than simply selecting the strongest available foam.
Selecting PMI Foam Density for Medical Imaging Tables
PMI foam density selection should begin with the mechanical and imaging requirements of the finished component.
Common PMI Foam Density Options
JLON supplies multiple density grades, including 32, 52, 75, and 110 kg/m³.
Each grade provides a different balance of weight and mechanical performance.
32 kg/m³ PMI Foam: This very low-density option may be evaluated for applications where minimum weight is a priority and structural loads are relatively modest.
52 kg/m³ PMI Foam: This grade offers lightweight construction with moderate structural performance, making it a candidate for medical imaging table sandwich structures.
75 kg/m³ PMI Foam: This option provides higher strength and stiffness for applications with more demanding structural requirements.
110 kg/m³ PMI Foam: This higher-density grade may be considered for structures requiring increased mechanical performance or localized load resistance.
These are engineering selection considerations rather than universal medical imaging design recommendations.
Why 52 and 75 kg/m³ Are Relevant Options
For medical imaging tabletops, JLON identifies 52 kg/m³ and 75 kg/m³ PMI foam as recommended starting options in its product selection guide.
F52 may be considered when low weight is particularly important and mechanical requirements can be satisfied.
F75 offers increased compressive and shear performance, making it suitable for evaluation in structures with more demanding loads.
The final choice also depends on the face sheet design, panel geometry, support arrangement, and required imaging performance.
Core Thickness and Structural Stiffness
Core thickness can significantly influence sandwich panel bending stiffness.
Increasing the distance between the face sheets can improve structural efficiency, although the actual result depends on the panel design and material properties.
A thicker, lower-density core may sometimes provide an attractive stiffness-to-weight balance compared with a thinner, denser alternative.
However, increasing thickness may also influence overall X-ray attenuation and equipment geometry.
A Practical Material Selection Approach
Engineers should evaluate several candidate configurations rather than selecting foam density independently.
For example, the comparison may include F52 foam with different core thicknesses, F75 foam with optimized face sheet thickness, alternative composite laminate constructions, and localized reinforcement at mounting positions.
Prototype testing and structural analysis can then help identify the most suitable combination.
PMI Foam vs Other Core Materials for Medical Imaging Tables
Several lightweight core materials are available for composite sandwich construction, including PMI foam, PVC foam, PET foam, and honeycomb materials.
Each has advantages depending on the manufacturing process and performance requirements.
PMI Foam vs PVC Foam Core
PVC foam is widely used in marine, transportation, and industrial composite structures.
It offers a practical balance of cost, lightweight construction, and mechanical performance.
PMI foam is particularly attractive for applications requiring higher-temperature processing and high structural performance.
For medical imaging table manufacturers using elevated-temperature prepreg curing, PMI may provide important processing advantages.
However, PVC foam should not be excluded without evaluating the specific temperature, load, and imaging requirements.
PMI Foam vs PET Foam Core
PET foam is a thermoplastic structural core commonly used in transportation, wind energy, and industrial panels.
PMI foam is often selected for applications requiring a combination of high-temperature processing capability and specific mechanical performance.
PET foam may provide an economical alternative where its properties and manufacturing characteristics meet the design requirements.
PMI Foam vs Honeycomb Core
Honeycomb cores can provide excellent lightweight structural efficiency.
However, foam and honeycomb materials behave differently during machining, bonding, local loading, and resin processing.
PMI foam provides a continuous closed-cell structure that can be machined into complex shapes.
For imaging table components requiring shaped surfaces or integrated structural features, this can simplify certain manufacturing operations.
Which Core Material Is Best?
There is no single core material suitable for every medical imaging table.
The appropriate choice depends on X-ray attenuation, mechanical performance, fabrication requirements, cost, and the finished equipment design.
PMI foam is a strong candidate when lightweight construction, structural performance, and high-temperature composite processing are important.
Manufacturing PMI Foam Sandwich Panels for Medical Imaging Equipment
Manufacturing compatibility is an important reason to consider PMI foam.
Medical imaging tabletops often require accurate geometry, reliable bonding, and stable composite construction.
Compatibility with Composite Prepreg Processing
PMI foam can be used with selected thermoset composite prepreg systems.
Its thermal resistance makes it suitable for processes involving elevated curing temperatures, provided the selected grade can tolerate the actual temperature and pressure cycle.
JLON offers PMI foam grades for different processing requirements.
For medical tabletops manufactured using high-temperature curing, the JLON F Series provides a relevant starting point for material evaluation.

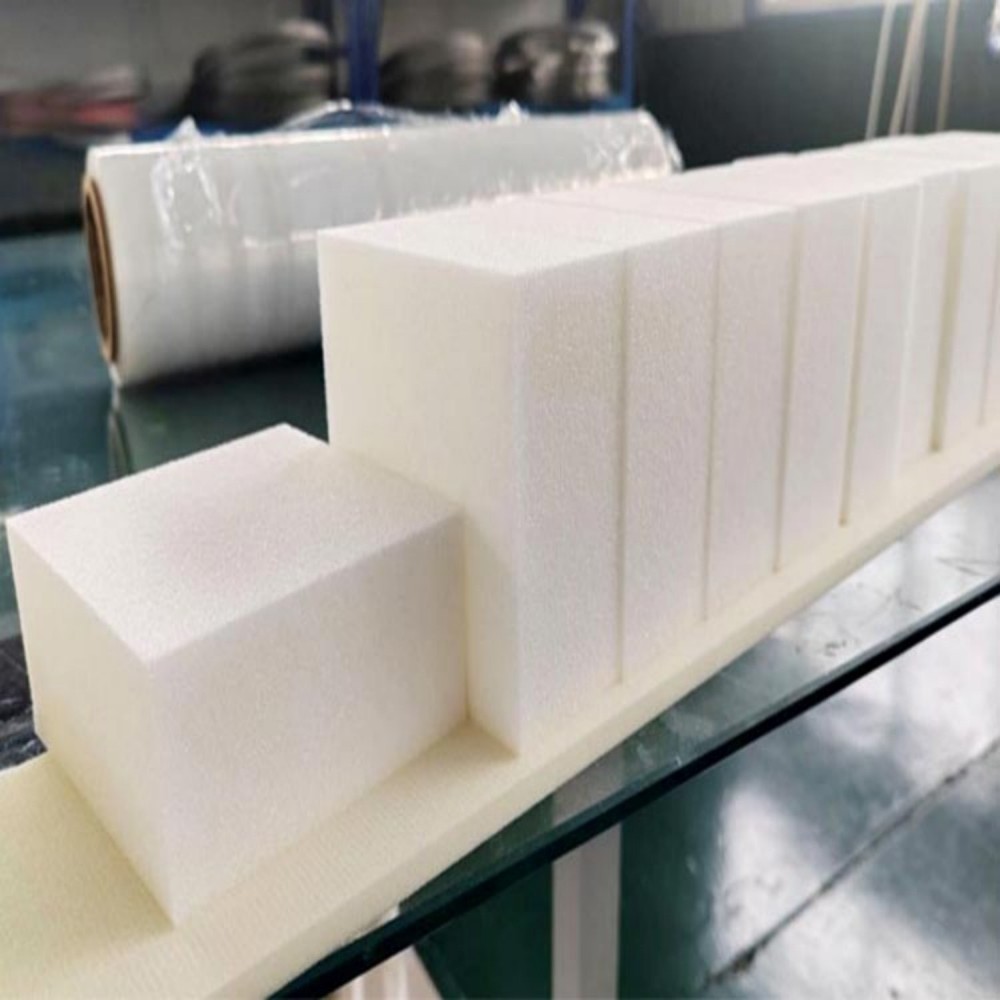

CNC Machining and Customized Core Shapes
Medical imaging equipment may require shaped tabletops, tapered sections, mounting features, and complex geometries.
JLON supports customized PMI foam core processing, including CNC contour cutting, precision thickness machining, grooving, shaping, customized core dimensions, and kitting preparation.
These services can help composite manufacturers reduce preparation work and improve manufacturing consistency.
Bonding Between PMI Foam and Composite Skins
Reliable bonding is essential to sandwich panel performance.
The interface between the foam core and composite face sheets transfers loads and helps the panel behave as an integrated structure.
Bonding quality depends on surface preparation, resin compatibility, curing conditions, and manufacturing control.

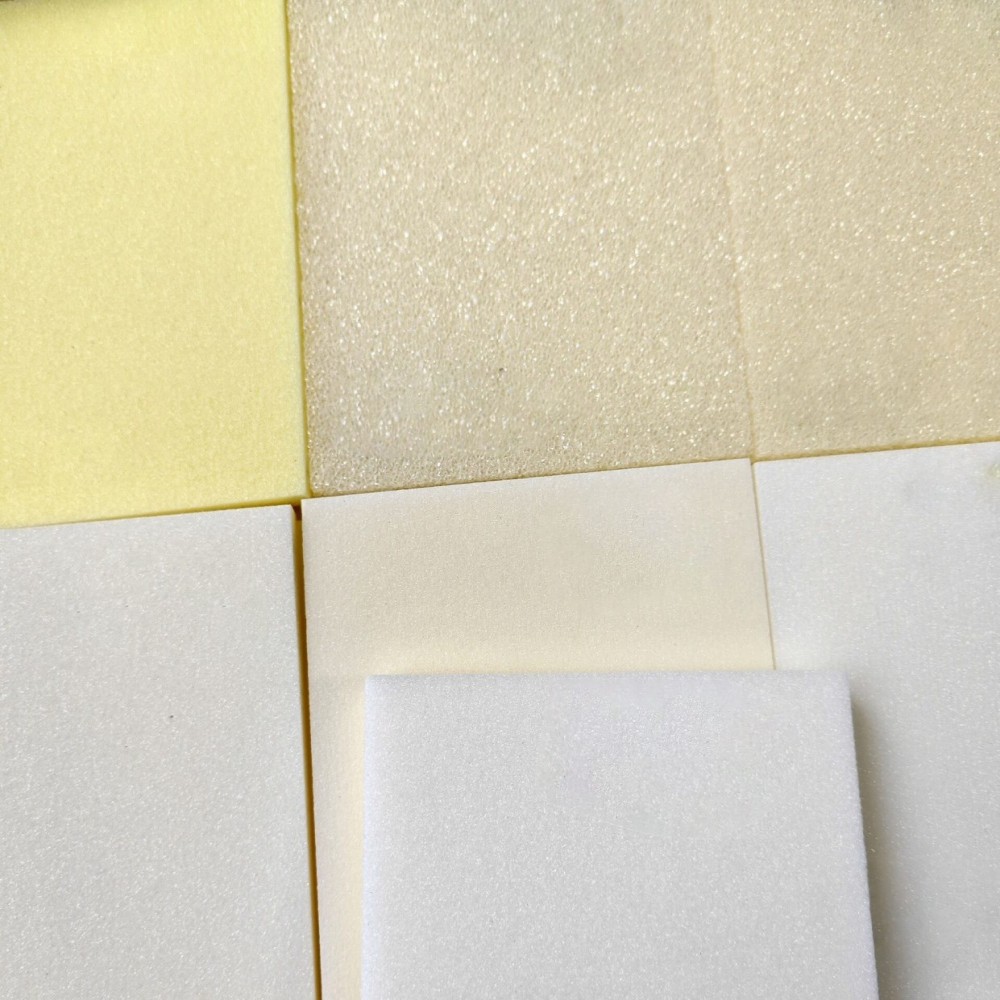

Why Foam Cell Structure Matters
PMI foam cell structure can influence resin interaction and skin-to-core bonding.
Different cell sizes may affect resin uptake and the resulting interface characteristics.
A larger cell structure may increase resin uptake under certain manufacturing conditions, while a finer cell structure may be preferred where lower resin consumption is a priority.
Actual bonding performance should be confirmed through representative testing.
Why Choose JLON PMI Foam Core?
JLON supplies high-performance composite core materials to customers in aerospace, UAV, transportation, medical equipment, and advanced industrial applications.
Our PMI foam portfolio supports manufacturers looking for reliable material performance, flexible specifications, and cost-effective sourcing.

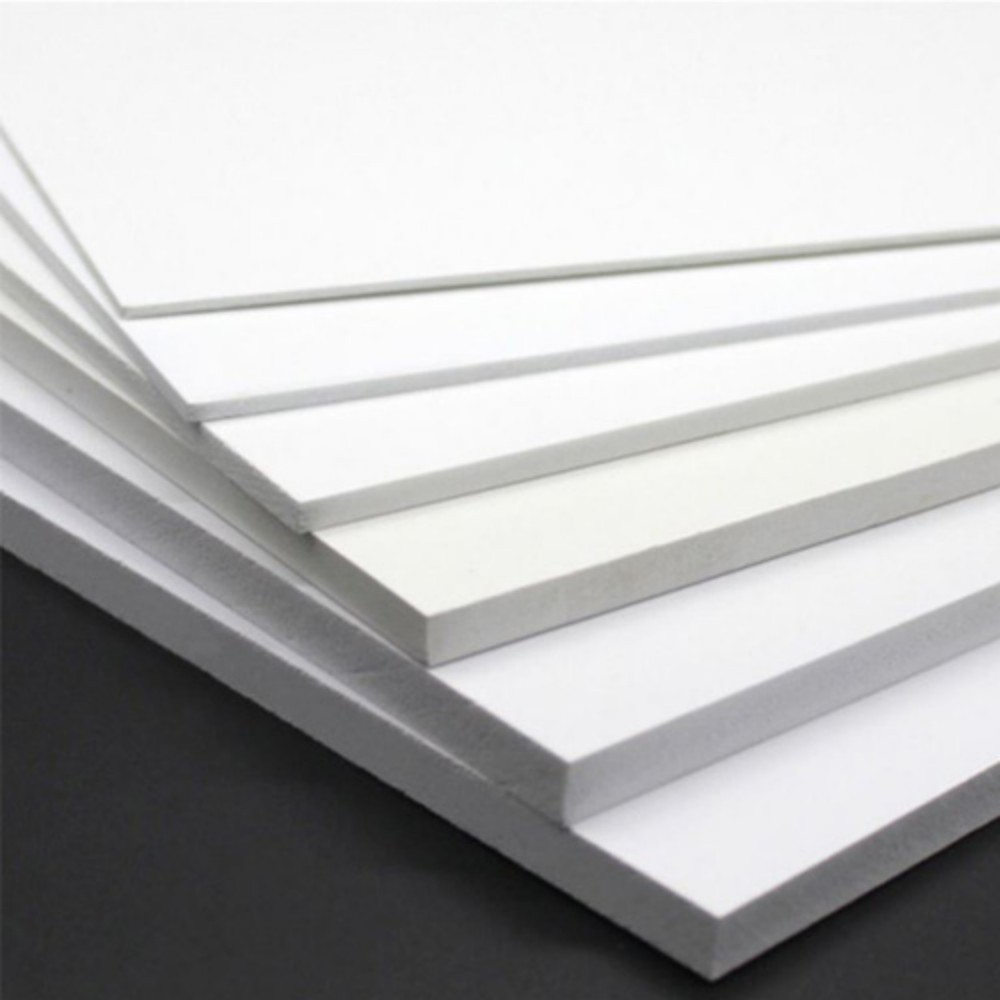

Multiple Density Grades
JLON offers PMI foam grades including F32, F52, F75, and F110, allowing manufacturers to select materials according to mechanical and processing requirements.
Customized Specifications
We support different sheet thicknesses, block dimensions, contour machining, and customized core preparation.
High-Temperature Processing Options
Our PMI foam portfolio includes grades designed for elevated-temperature composite manufacturing.
Material suitability should be confirmed against the customer's specific curing cycle.
Technical and Commercial Support
As a composite materials supplier, JLON works with manufacturing partners to support material selection, specifications, technical documentation, and customized supply requirements.
Customers can submit their target density, thickness, curing temperature, and performance requirements for product evaluation.
Explore JLON PMI Foam Core: https://www.jloncell.com/professional-pmi-foam.html
Frequently Asked Questions About PMI Foam for Medical Imaging Tables
Is PMI Foam Transparent to X-Rays?
PMI foam is a low-density polymer material that can offer relatively low X-ray attenuation, making it suitable for consideration in radiolucent composite structures.
However, actual X-ray transparency depends on the foam grade, thickness, beam conditions, and complete sandwich panel construction.
What Density of PMI Foam Is Suitable for CT Tables?
JLON identifies 52 and 75 kg/m³ as starting options for medical tabletop applications.
The final selection depends on structural loading, deflection limits, core thickness, imaging attenuation requirements, and the composite laminate design.
Can PMI Foam Be Used with Carbon Fiber Prepreg?
Yes. Selected PMI foam grades can be used with compatible carbon fiber prepreg systems.
The foam grade must be evaluated against the required curing temperature, pressure, and resin processing conditions.
Does Higher PMI Foam Density Improve Structural Performance?
Generally, higher-density PMI foam provides greater compressive strength, shear strength, and stiffness within the same product series.
However, higher density also adds weight and may increase X-ray attenuation.
Material selection should balance these factors.
Can JLON Supply Customized PMI Foam Core Sheets?
Yes. JLON supports PMI foam sheets, blocks, customized thicknesses, CNC machining, and application-specific core preparation.
Customers can provide drawings and technical specifications for evaluation.
Conclusion
PMI foam core offers a practical combination of lightweight construction, mechanical performance, and manufacturing flexibility for medical imaging table applications.
Its low-density polymer structure makes it a suitable candidate for composite panels where low X-ray attenuation is required, while its compressive and shear properties support lightweight sandwich construction.
For X-ray and CT tabletops, the most important consideration is balancing imaging performance with structural requirements.
Density, thickness, composite face sheets, bonding, and curing conditions must be evaluated together to achieve a suitable finished panel.
JLON supplies PMI foam core materials for medical imaging equipment and other high-performance composite applications, including multiple density grades and customized machining options.
Contact JLON to discuss your medical imaging tabletop requirements and request PMI foam technical data, available dimensions, or a quotation.
Product Page: https://www.jloncell.com/professional-pmi-foam.html
