Machining PMI foam core for aerospace composite parts requires more than cutting a lightweight sheet to size. The finished core must match the component geometry, support consistent skin bonding, and remain undamaged through handling and layup. Small errors around thin edges, pockets, or mating surfaces can create assembly problems before the composite curing cycle begins.
PMI foam, also known as polymethacrylimide foam, can be processed using methods such as milling, drilling, sawing, and sanding. CNC machining allows manufacturers to produce complex three-dimensional core shapes for composite sandwich structures.
JLON supplies PMI foam core materials and customized processing options for composite manufacturing. This guide explains how to plan machining operations, support lightweight foam blanks, control common defects, and prepare machined cores for the next production stage.
1. Define the Finished Core Before Machining
Review the Drawing and Composite Assembly
Start with the approved core drawing and its relationship to the complete composite part. A core that looks correct on its own may still fit poorly against a mold, adjoining core segment, or laminate transition.
Confirm the drawing revision, units, reference surfaces, material designation, and inspection requirements before preparing the CNC program. Identify which dimensions control assembly and which surfaces will contact adhesive or prepreg.
Features That Need Particular Attention
Check thin sections, tapered edges, internal corners, pockets, holes, and transitions between different core thicknesses. These features affect tool access and determine where additional support may be necessary.
Do not automatically reproduce the external component surface as the core surface. The design may include allowances for laminate thickness, adhesive layers, and other assembly features.
Specify the PMI Foam Material
Identify the required PMI foam grade, nominal density, sheet thickness, and material documentation. Avoid substituting another grade solely because its density appears similar.

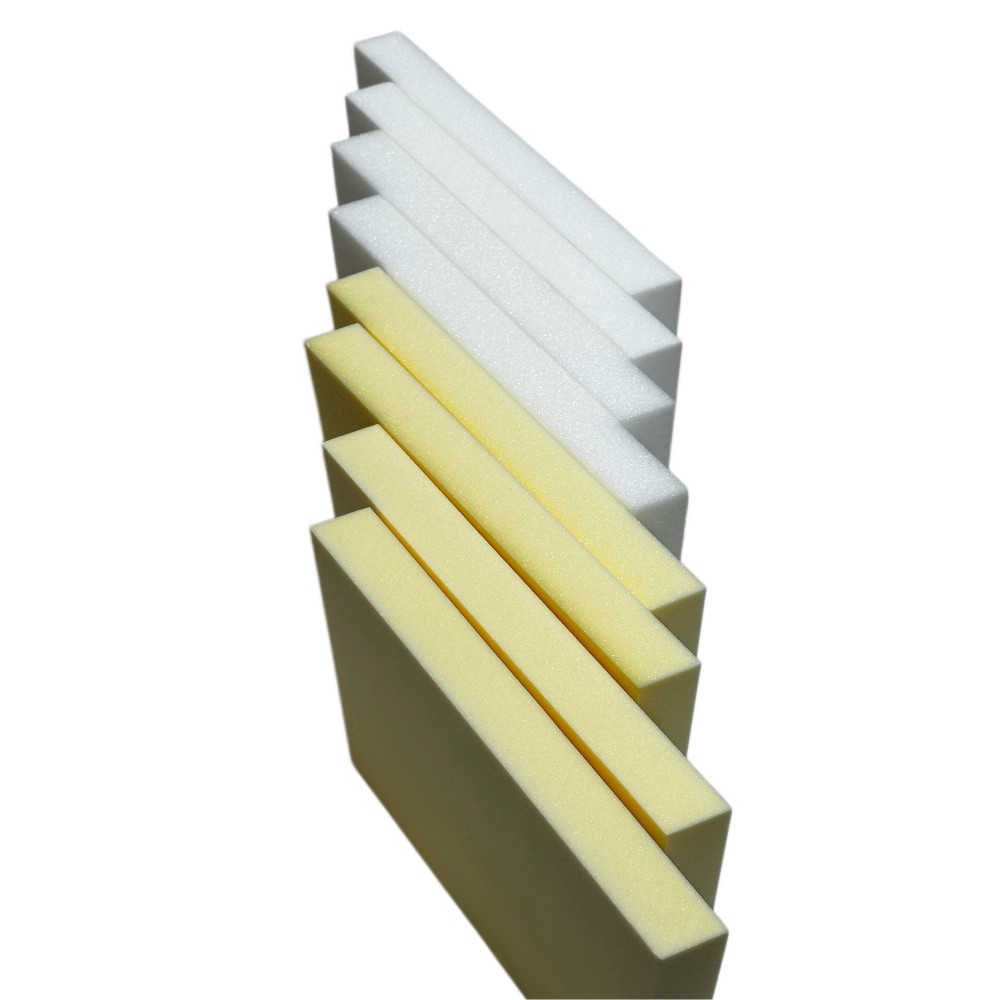

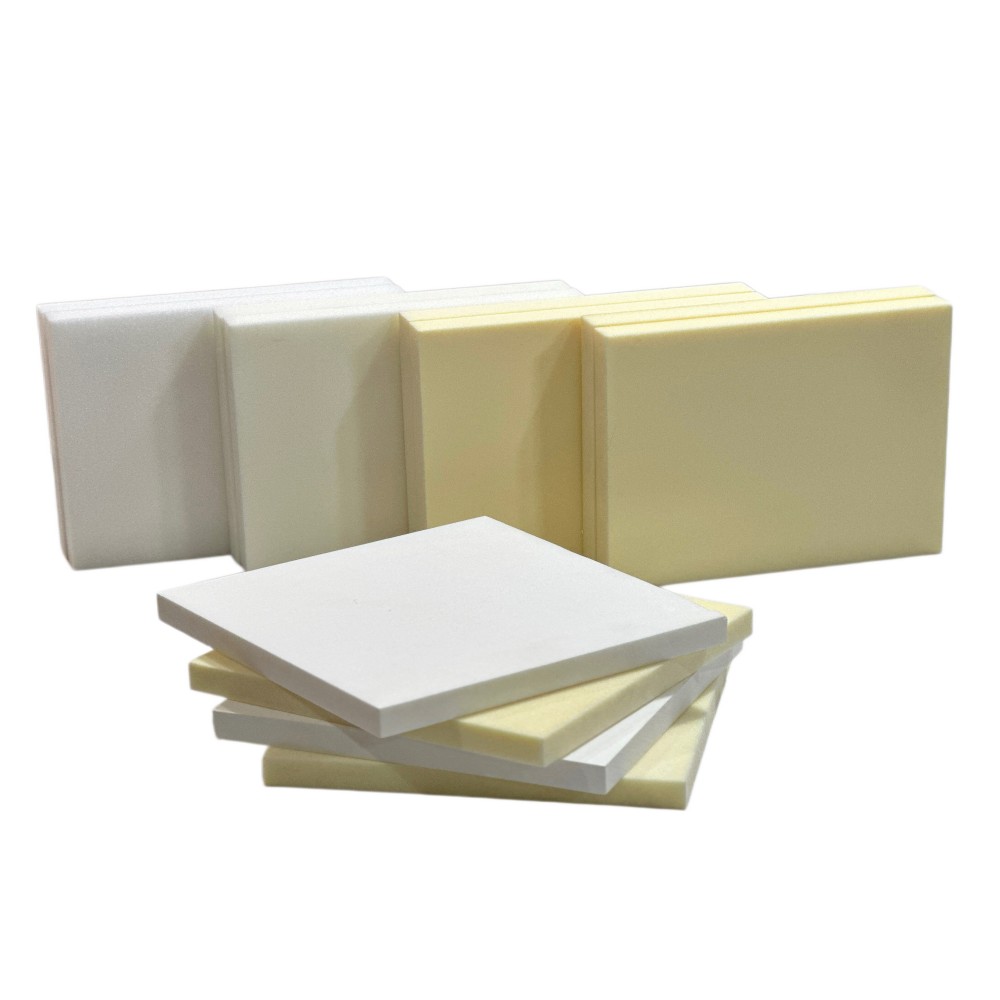

When requesting JLON PMI foam sheets, provide the material specification together with the component drawing. Agree on the supplied blank dimensions and any machining allowance before production begins.
2. Inspect and Prepare PMI Foam Sheets
Check Incoming Material
Inspect each blank for cracks, damaged corners, contamination, and handling marks. Confirm that its dimensions provide enough material for machining without leaving unnecessarily large amounts of stock.
Record the material identification before cutting a large sheet into smaller blanks. Traceability becomes harder to maintain once several visually similar components enter the workshop.
Keep Identification Away from Bonding Surfaces
Use the identification method permitted by the project specification. Labels, inks, and temporary marking materials should not introduce unapproved residues onto surfaces that will later be bonded.
For multiple parts cut from one sheet, maintain a record linking the individual blanks to the original material batch.
Confirm Material Conditioning Requirements
Check whether the selected grade or manufacturing specification requires drying, heat treatment, or another conditioning step. Determine whether that operation belongs before machining, after machining, or elsewhere in the approved process.
Do not apply a universal drying temperature to all PMI structural foam. Use the material supplier’s instructions and the requirements of the intended composite process.
3. Select Suitable Machines and Cutting Tools
Match the Machine to the Geometry
Flat profiles and accessible pockets may be produced on a three-axis CNC machine. More complex surfaces may require additional setups or multi-axis equipment.
Choose the setup that provides access while maintaining reliable part support and repeatable references. Additional machine axes do not remove the need for careful fixturing.
Use Tools Intended for Foam Processing
Sharp cutting edges and suitable tool geometry help reduce cutting pressure and unwanted movement of lightweight blanks. Select tools designed for the material and the type of feature being produced.
Consider the available access, cutter diameter, tool reach, and the machine’s operating range. Check tool condition before processing valuable or complex blanks, particularly when machining thin sections or delicate edges.
Separate Roughing and Finishing Requirements
Roughing removes excess material while preserving enough support for subsequent operations. Finishing establishes the final surface and dimensions.
Choose each operation deliberately. A tool that removes stock quickly may not deliver the required result around a thin edge or small internal feature.
Validate Speeds and Feeds
There is no single spindle speed or feed rate suitable for every PMI foam core. Tool diameter, cutting geometry, foam grade, engagement, and fixture stability all affect the result.
Run a trial using representative material and features. Inspect the surface, edge quality, and dimensions before approving the settings for production.
Record the validated conditions so operators can reproduce the process.
4. Support the Foam Without Distorting It
Design the Fixture Around the Part
A lightweight foam blank needs adequate support beneath the cutting area. A fixture that restrains one end while leaving a thin section unsupported may allow movement during machining.
Consider how the part’s stiffness changes as material is removed. Support that works for the original rectangular blank may become insufficient after deep pockets or curved surfaces are machined.
Evaluate Vacuum Workholding
Vacuum fixtures can provide distributed restraint for suitable PMI foam components. However, their performance must be checked against the actual material, contact area, and part geometry.
Validate holding performance throughout the machining sequence. Through-cuts, openings, and changing contact areas can affect the fixture’s ability to retain the workpiece.
Protect Thin and Finished Surfaces
Use appropriate support beneath thin regions and inspect the part for fixture impressions. Where a second setup contacts an already finished surface, ensure that the supporting nest is clean and correctly matched.
If mechanical clamps are used, distribute their loads and confirm that they do not compress or damage the foam.
5. Plan the CNC Machining Sequence
Establish Repeatable Reference Surfaces
Define how the blank will be located for the first operation and how those references will be transferred to later setups.
Where both sides require machining, plan the second-side fixture before starting the first side. This helps prevent situations where the partially finished part has no stable locating surface.
Rough the Main Geometry
Remove bulk material while retaining support around fragile features. Avoid creating the thinnest edges early if subsequent operations will expose them to handling or cutting loads.
Leave a controlled finishing allowance where required. Its value should come from the validated process rather than an arbitrary rule.
Review Tool Entry and Exit
Inspect the programmed path where the cutter enters or leaves an edge. Unsupported exits and abrupt engagement changes deserve particular attention during the trial.
Adjust the sequence, support, or cutting approach when the trial shows local damage. Record the change instead of relying on operator workarounds.
Finish Contours and Mating Surfaces
Finish the surfaces that determine fit against molds, adjoining core sections, or other assembly components.
Check curved areas for visible toolpath steps and inspect transitions between different cutter operations. Any additional blending should follow an approved method that preserves the specified geometry.
Machine Pockets and Holes
Pockets and holes may locate inserts, provide clearance, or form part of the assembly design. Their function determines which dimensions and surface conditions matter most.
Where a hole breaks through the opposite face, evaluate exit support and inspect for breakout. Do not assume that a clean entrance guarantees an acceptable exit.
6. Control Dust and Surface Contamination
Use Effective Extraction
Dry foam machining can generate fine debris that requires suitable dust collection. Extraction also helps keep the cutting area visible and limits the accumulation of loose particles around fixtures and finished surfaces.
Position extraction so it captures debris without interfering with the cutter or displacing delicate parts. Follow the material safety data sheet and the workshop’s requirements for dust handling.
Keep Bonding Faces Clean
Machined PMI foam core will often become part of a bonded sandwich structure. Plan handling and cleaning accordingly.
Protect the foam from oil, grease, dirty gloves, and unapproved fixture materials. Cleaning should remove loose machining debris without changing the part dimensions or introducing another contaminant.
Approve Cleaning Materials Before Use
Do not introduce a solvent, detergent, or compressed-air cleaning method simply because it is convenient. Confirm compatibility with the foam, the adhesive or resin system, and the applicable manufacturing procedure.
Store cleaned parts in a protected area until inspection and packaging are complete.
7. Troubleshoot Common PMI Foam Machining Defects
Chipped Edges
When an edge chips, review tool sharpness, workpiece support, cutting engagement, and the direction in which the tool exits the material.
Check whether the damage occurs consistently at the same feature. A repeatable location often points to a fixture or toolpath issue that can be corrected systematically.
Torn or Uneven Surfaces
An uneven surface warrants inspection of the cutter, machine setup, and workholding. Compare the affected area with surfaces produced earlier in the same operation.
Change one process variable at a time during troubleshooting. This makes it easier to identify which adjustment improved the result.
Dimensions Change After Release
If the part measures correctly while held but changes after removal, investigate whether the fixture restrained it in a distorted condition.
Measure the core using the specified support arrangement and environmental conditions. A free-state measurement and an inspection performed on a supporting fixture may represent different requirements.
Avoid Uncontrolled Rework
Do not sand a feature until it appears to fit without checking the drawing and rework procedure. Manual adjustment can remove evidence of the original problem while creating a new dimensional error.
Document the defect, determine its cause, and obtain the required disposition before proceeding.
8. Inspect the Finished Aerospace Foam Core
Check Dimensions Against Functional Requirements
Prioritize overall thickness, surface profile, mating edges, pocket locations, and other drawing-defined features.
Select an inspection method appropriate for the foam. Contact measuring tools should be used carefully so the measurement itself does not indent or compress the surface.
For complex geometry, a checking fixture or suitable scanning method may help compare the machined component with its intended shape.
Inspect Surface Integrity
Look for cracks, crushed regions, breakout, loose debris, and handling damage. Pay particular attention to thin transitions and areas that were hidden by the fixture.
A dimensionally acceptable core may still require rejection or review if its surface condition falls outside the specified acceptance criteria.
Retain Production Records
Keep the drawing revision, material identification, machining program revision, inspection results, and any approved rework record together.
For repeat orders, these records provide a practical basis for reproducing the accepted component and investigating later changes.
9. Package and Organize Machined Core Kits
Protect Fragile Features
Package CNC-machined PMI foam so thin edges and projecting features do not carry loads from adjacent parts.
Use suitable separators and supports to prevent movement during transport. Packaging should also protect cleaned surfaces from workshop and shipping contamination.
Make Assembly Identification Clear
For multi-piece core kits, identify each component and its intended orientation. Include an assembly reference when several similar-looking pieces belong to different locations.
A well-organized kit can reduce unnecessary handling and help the layup team confirm that the correct components are available before assembly starts.
10. Specify Custom PMI Foam Core with JLON
Provide a Complete Machining Enquiry
JLON’s PMI foam offering includes CNC contour cutting, three-dimensional shaping, grooving, perforation, and customized core kitting. The appropriate processing scope should be confirmed against the individual drawing and manufacturing requirements.
A complete enquiry helps define the material, machining work, inspection scope, and delivery expectations before a quotation is prepared.
Material and Drawing Requirements
Provide the required PMI foam grade, density, and blank dimensions, together with a dimensioned drawing and an available 3D model. Clearly identify critical tolerances, reference surfaces, and surface acceptance criteria.
If the material specification has not yet been finalized, explain the application and the intended composite manufacturing process so the available options can be discussed.
Quantity and Delivery Requirements
State the prototype quantity, expected production volume, and required delivery schedule. Include any requirements for material documentation, batch traceability, part identification, and protective packaging.
For core kits, explain whether components should be grouped by assembly, production batch, or individual finished part.
Validate the First Article
Before placing a repeat production order, evaluate a representative machined core for dimensional accuracy, fit, handling, and compatibility with the next manufacturing stage.
Material approval and machining approval should be addressed within the project’s qualification process. Describing a component as an aerospace application does not automatically establish that a particular foam grade or supplier is approved for it.
JLON can discuss PMI foam sheets, custom-cut blanks, and CNC-machined PMI foam core options against your project requirements. Share your drawings and processing conditions to define a practical supply scope.
Frequently Asked Questions
Can PMI Foam Be CNC Machined into Complex Shapes?
Yes. PMI foam can be machined into three-dimensional core geometries. Achievable features and tolerances depend on the grade, part design, tooling, support, and validated process.
What Tolerance Should I Specify?
Specify the tolerance required for the component to function and assemble correctly. Discuss feasibility with the processor rather than applying the tightest tolerance to every surface.
Should Every Machined Surface Be Sanded?
No. Additional sanding should only be used where the approved process requires it. Uncontrolled sanding can change dimensions and create inconsistent mating surfaces.
Can I Order Ready-to-Assemble PMI Core Kits from JLON?
JLON offers customized kitting among its PMI foam processing services. Confirm the required geometry, identification, inspection, and packaging arrangements when requesting a quotation.
