PVC Foam Core vs PET Foam vs PMI Foam: Which One Is Best for Boat Building?

Quick Answer

If you are selecting materials for foam core boat construction:

PVC foam core → Best choice for marine foam core and structural boat parts

PET foam core → Best for cost-sensitive and recyclable projects

PMI foam core → Best for aerospace and high-performance applications

For most foam core boat building materials, PVC foam core is the industry standard.

What Is Foam Core in Boat Construction?

In modern boat composite materials, foam cores are used in sandwich structures:

• Outer layers: fiberglass or carbon fiber

• Core layer: lightweight foam (PVC, PET, PMI)

This design is widely used in foam core boat construction because it:

• Reduces overall weight

• Increases stiffness and strength

• Improves durability and fatigue resistance

That’s why choosing the right marine foam core is critical for performance and lifespan.

PVC vs PET vs PMI Foam Core: Comparison Table

Process Compatibility in Boat Manufacturing

When selecting foam core boat building materials, processing compatibility is often overlooked but critical.

PVC Foam Core

• Excellent resin flow performance

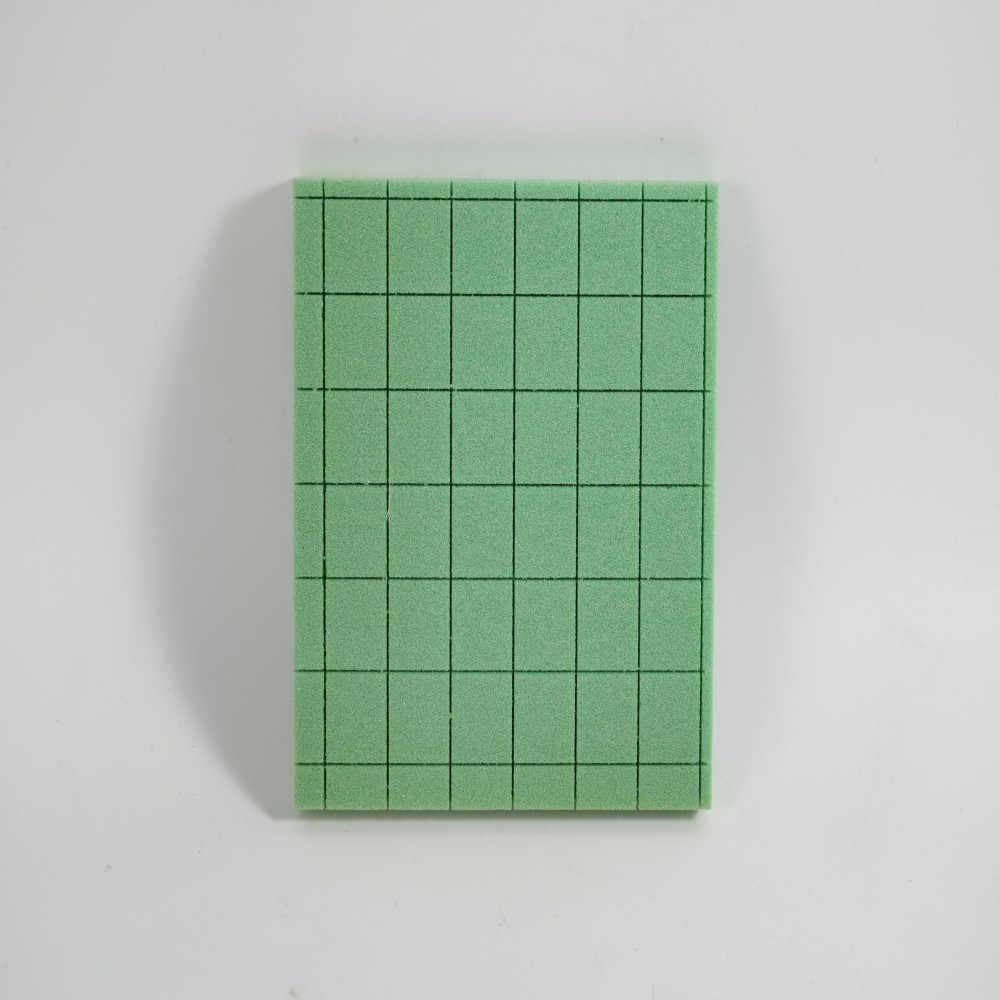

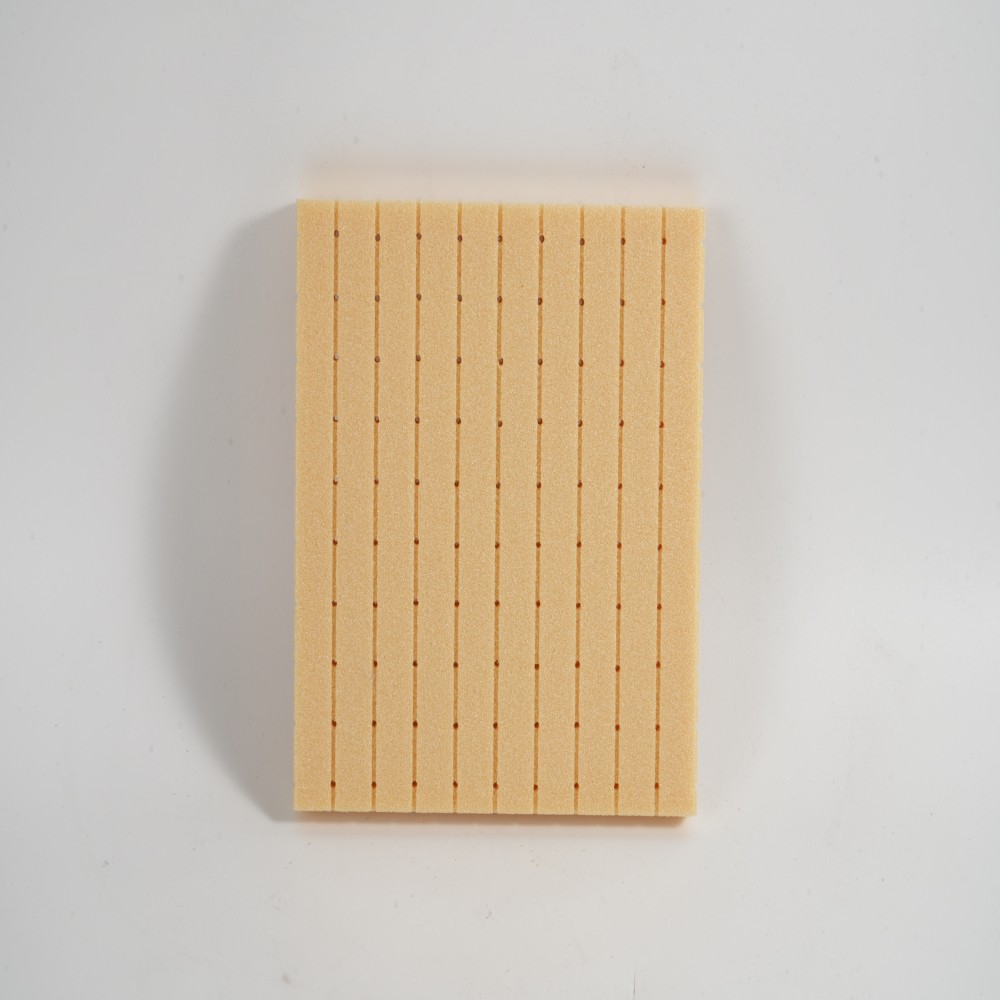

• Available in perforated, grooved, scrim-backed formats

• Ideal for vacuum infusion, VARTM, RTM processes

This is why PVC dominates foam core boat construction.

PET Foam Core

• Acceptable for infusion

• May require more careful resin control

• Less customization options

PMI Foam Core

• Limited use in infusion

• Typically used in prepreg processes

Conclusion:

If your process is vacuum infusion, which is common among most boat builders, PVC foam core is the safest and most efficient choice.

Real Engineering Selection Logic

Most engineers don’t choose foam core based on material alone.

They evaluate:

• Load requirements, including compression and shear

• Weight targets

• Manufacturing process

• Cost constraints

Typical Decision Flow

Step 1: Define structure

Hull and deck are structural parts, so PVC is typically the first consideration.

Step 2: Check process

If the production method is infusion, PVC is preferred.

Step 3: Optimize cost

Non-critical parts can be considered for PET to reduce cost.

Step 4: Extreme performance requirements

Only in high-performance applications should PMI be evaluated.

This is the real logic behind selecting marine foam core in boat composite materials.

Application Deep Dive

PVC Foam Core (Primary Structure)

• Hull shell

• Deck panels

• Stringers

• Bulkheads

PET Foam Core (Secondary Structure)

• Interior panels

• Furniture

• Non-load partitions

PMI Foam Core (Special Use)

• Racing boat parts

• Lightweight reinforcements

In most foam core boat construction, PVC covers approximately 70–90% of core material usage.

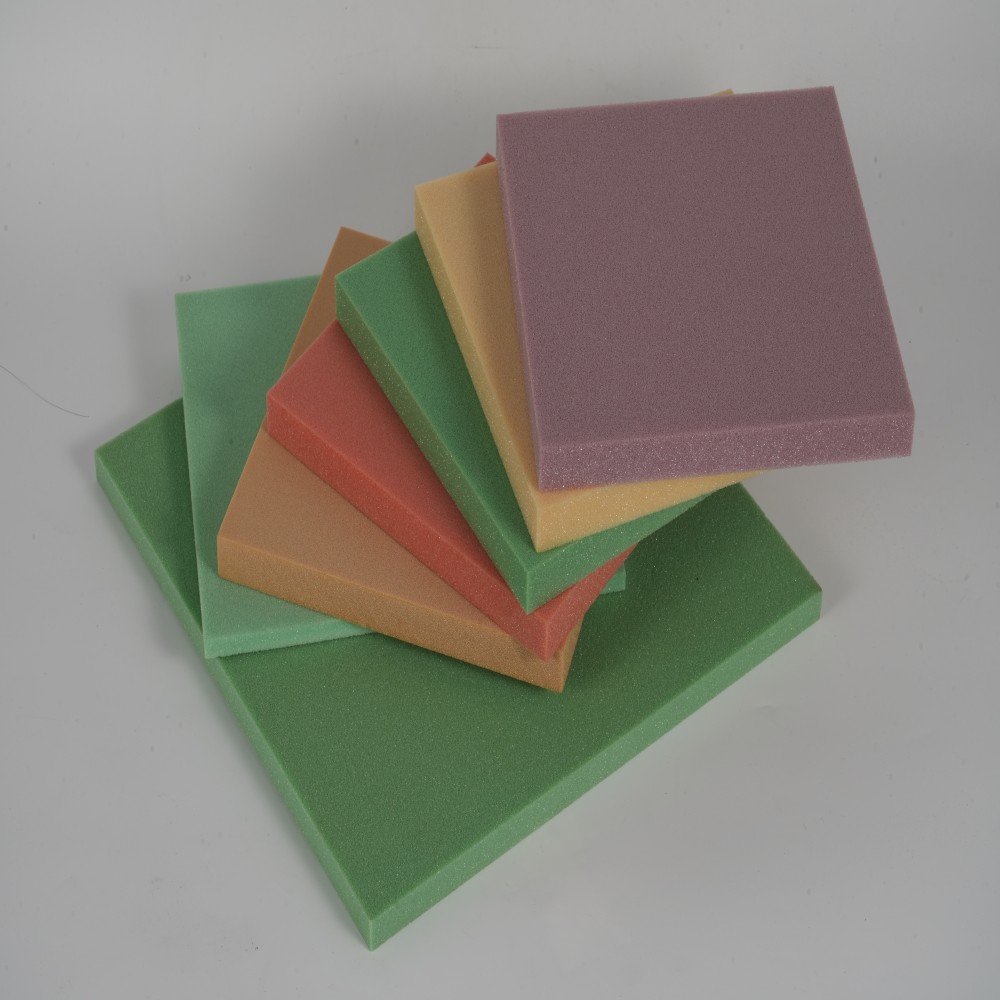

PVC Foam Core: Best Choice for Marine Applications

PVC foam is the most widely used marine foam core in the world.

Key Advantages

• Closed-cell structure provides very low water absorption

• High shear strength, making it ideal for hull and deck applications

• Excellent compatibility with vacuum infusion, VARTM, and hand lay-up

This makes PVC the preferred material for foam core boat building materials.

Typical Applications

• Boat hulls

• Decks

• Bulkheads

• Superstructures

If you are designing load-bearing parts in boat composite materials, PVC is the safest option.

PET Foam Core: Cost-Effective and Recyclable

PET foam is a thermoplastic material increasingly used in composite structures.

Key Advantages

• Can be made from recycled materials

• Lower cost than PVC foam core

• Good fatigue resistance

Limitations

• Slightly higher water absorption compared to PVC

• Lower structural strength than PVC foam core

Suitable For

• Interior boat structures

• Wind turbine blades

• Non-critical sandwich panels

PMI Foam Core: High-End Performance Material

PMI foam is an advanced structural foam used in demanding applications.

Key Advantages

• Extremely high strength-to-weight ratio

• Excellent thermal resistance

• Superior mechanical performance

Limitations

• Very high cost

• Not necessary for most standard foam core boat construction

Mainly Used In

• Aerospace

• Racing

• High-performance engineering

How to Choose the Right Foam Core for Boat Building

For Structural Boat Parts

Choose PVC foam core.

Because it provides:

• Best balance of strength and weight

• Excellent durability in marine environments

• Proven performance in marine foam core applications

For Budget or Eco Projects

Choose PET foam core.

Because it offers:

• Lower cost

• Recyclability

• Adequate performance for non-structural parts

For Extreme Performance Needs

Choose PMI foam core.

Because it delivers:

• Ultra-lightweight structures

• Aerospace-level performance

Density Selection Guide for Engineers

Choosing the correct density is critical in foam core boat construction:

• 60–80 kg/m³: lightweight panels, interior parts

• 80–130 kg/m³: hulls and decks

• 130 kg/m³ and above: high-load structural areas

Incorrect density selection is one of the most common mistakes in boat composite materials.

Common Mistakes When Choosing Foam Core

• Using PET foam for structural hull parts, which may lead to insufficient strength

• Choosing PMI for standard boat construction, which increases unnecessary cost

• Ignoring processing method and infusion compatibility

• Not selecting proper density for structural requirements

Why Choosing the Right Foam Core Supplier Matters

A reliable foam core supplier ensures:

• Consistent material quality

• Full density range availability

• Processing options, including grooved, perforated, and scored formats

• Technical support for vacuum infusion, RTM, and VARTM processes

Why Choose JLON as Your Foam Core Supplier?

JLON is a professional supplier of composite materials with strong experience in marine foam core solutions.

What JLON Offers

• High-quality PVC foam core for boat building

• Full range of densities and customized formats

• Technical support for foam core boat construction

• Reliable supply for global customers

Whether you need foam core boat building materials or complete boat composite materials, JLON can support your project from design to production.

FAQ

Is PVC foam core waterproof?

PVC foam has a closed-cell structure, making it highly resistant to water absorption and ideal for marine applications.

Can PET foam replace PVC in boat construction?

PET foam can be used in non-structural areas, but PVC remains the preferred choice for structural boat parts.

What foam core density is used in boats?

Typically:

• 60–80 kg/m³ for lightweight parts

• 80–130 kg/m³ for hull and deck structural parts

Is PMI foam used in boats?

PMI foam is rarely used in boats due to its high cost. It is mainly applied in aerospace and high-performance fields.

Conclusion

For most foam core boat construction projects, PVC foam core is the best overall choice.

• PET foam core: cost-effective alternative

• PMI foam core: high-end niche material

If your focus is on marine foam core and reliable boat composite materials, PVC offers the best balance of performance, durability, and cost.

Get Expert Support for Your Project

Looking for a reliable foam core supplier?

JLON can help you with:

• Material selection

• Technical consultation

• Sample support

• Custom specifications

Contact us today to discuss your foam core boat building materials requirements and get a tailored solution.
