What Is Recycled PET Foam Core?
Recycled PET foam core is a lightweight thermoplastic core material used between two strong outer skins to form a composite sandwich panel. The PET polymer is commonly sourced partly or entirely from recycled polyethylene terephthalate, including post-consumer or post-industrial material. Depending on the manufacturer and grade, the recycled feedstock may come from PET bottles, production scrap or other controlled PET waste streams.
In a sandwich structure, the skins—typically glass fiber or carbon fiber laminates, aluminum, steel or fiber-reinforced thermoplastics—carry most of the tensile and compressive loads. The PET foam core separates the skins and helps the panel resist bending and shear. This produces a component that is much stiffer than a thin solid laminate without adding the weight of a fully solid structure.
By 2026, recycled PET foam core is no longer viewed only as a “green alternative.” It is an established engineering material for wind turbine blades, transportation panels, marine structures, building panels and industrial composite parts. Its attraction comes from a useful combination of structural performance, process compatibility, thermal insulation, cost control and recycled content.
However, not every PET foam is the same. Density, cell structure, recycled-content percentage, resin uptake, compressive strength, shear performance, temperature resistance and quality consistency vary by grade. A suitable material must therefore be selected according to the actual design and manufacturing requirements—not from the word “PET” alone.
Why Recycled PET Foam Core Matters in 2026
Composite manufacturers are under increasing pressure to reduce embodied carbon, document recycled content and improve material traceability. At the same time, they cannot compromise production reliability or structural performance. Recycled PET core material sits at the intersection of these requirements.
PET is a thermoplastic. Production waste can potentially be reprocessed, and the polymer itself can be recycled under suitable collection, separation and processing conditions. Recycled-content PET foam also creates a higher-value use for recovered PET feedstock. These characteristics make it attractive to companies setting procurement and carbon-reduction targets.
That does not mean a complete PET sandwich panel is automatically recyclable. Adhesives, thermoset resin skins, coatings, inserts and mixed materials can make end-of-life separation difficult. “Made with recycled PET,” “PET is recyclable” and “the finished component will be recycled” are three different claims. Responsible suppliers and users should keep them separate.
For buyers in 2026, useful sustainability evidence includes the percentage and type of recycled content, feedstock origin, traceability, a product carbon footprint or environmental product declaration where available, and a realistic end-of-life route.
Major Applications of Recycled PET Foam Core
Wind Turbine Blades and Nacelles
Wind energy remains one of the largest application areas for structural PET foam. PET core can be used in selected blade areas such as shells, shear-web structures and other sandwich sections, depending on the blade design and engineering qualification. It is also suitable for nacelle covers and other composite housings.
The main reasons are availability in large volumes, consistent thickness, compatibility with resin infusion and the ability to balance cost, weight and mechanical performance. PET can also provide a more uniform industrial supply than natural core materials.
The limitation is that blade designers cannot substitute PET for another core purely by matching density. Through-thickness tensile strength, shear fatigue, compressive behavior, resin uptake and local load conditions must be checked. Large wind components also require reliable grooving, perforation, kitting and tight process control across very large surface areas.
Rail and Public Transportation
PET foam core is used in lightweight sandwich panels for rail interiors and transportation structures. Potential components include ceilings, partition panels, doors, floors, equipment covers, interior wall panels and other non-metallic assemblies.
Fire performance is critical. Standard PET foam should not be assumed to meet rail, bus or other transportation fire, smoke and toxicity requirements. The complete panel—including skins, resin, adhesive, coating and core—must be tested according to the applicable standard and hazard level.
A fire-retardant PET foam grade may be needed, but using such a grade does not by itself certify the finished component.
Commercial Vehicles and Automotive Panels
Structural PET foam is used in roofs, floors, side panels, partitions, load-space panels, fairings and other lightweight vehicle components. It can be particularly useful for buses, trucks, trailers, recreational vehicles and specialized commercial vehicles where stiffness, insulation and weight reduction are important.
For floors and local attachment zones, designers must check compressive strength, creep, impact performance, insert pull-out strength and concentrated loading. Higher-density PET or local reinforcement may be required around bolts, hinges, seats and equipment mounts.
Marine Composite Structures
PET core material can be used in boat decks, bulkheads, superstructures, interior panels, hatches and selected hull structures. It offers good water resistance as a closed-cell foam and is compatible with common composite manufacturing methods.
Marine suitability still depends on the grade and structural design. A foam’s water absorption value does not eliminate the need to seal exposed edges, penetrations and fastener holes.
Highly loaded hull bottoms, slamming zones and weight-critical high-performance craft may favor another core type or a higher-performance PET grade. Classification requirements must also be confirmed for the exact material, density and application.
JLON supplies PET and PVC foam core solutions for marine composite manufacturers and can support customers with cut sheets, grooved and perforated formats, contourable panels and application-based material selection.
JLON PET and PVC foam options with relevant marine approval can be offered where project certification requires them. The exact certificate scope should always be checked against the ordered grade.
Building and Industrial Panels
PET foam can serve as the core in façade elements, modular panels, doors and partitions. It is also used in machine covers, equipment housings, access panels and custom industrial components.
Material selection may be driven by fire behavior, long-term creep, bond durability, chemical exposure, processing temperature or insulation requirements. The complete panel must meet the relevant building code or industrial specification.
Key Benefits of Recycled PET Foam Core
High Stiffness at Low Weight
Adding a lightweight core increases the distance between the skins of a sandwich panel. This can greatly improve bending stiffness with a relatively small weight increase. The result is often a lighter structure than a solid laminate designed for similar rigidity.
Recycled Content and Circularity Potential
Many structural PET foam grades use significant recycled PET content, and some are produced with up to 100% recycled feedstock. The exact percentage must be confirmed for each product.
Because PET is thermoplastic, clean manufacturing scrap may also have a potential recycling route. However, the availability of a practical collection and recycling system should be verified locally.
Good Processing Versatility
PET foam sheets can be used with vacuum infusion, hand lay-up, resin transfer processes, prepreg systems, press bonding and other manufacturing methods, depending on the selected grade.
Available finishing options may include:
• Plain PET foam sheets
• Perforated sheets

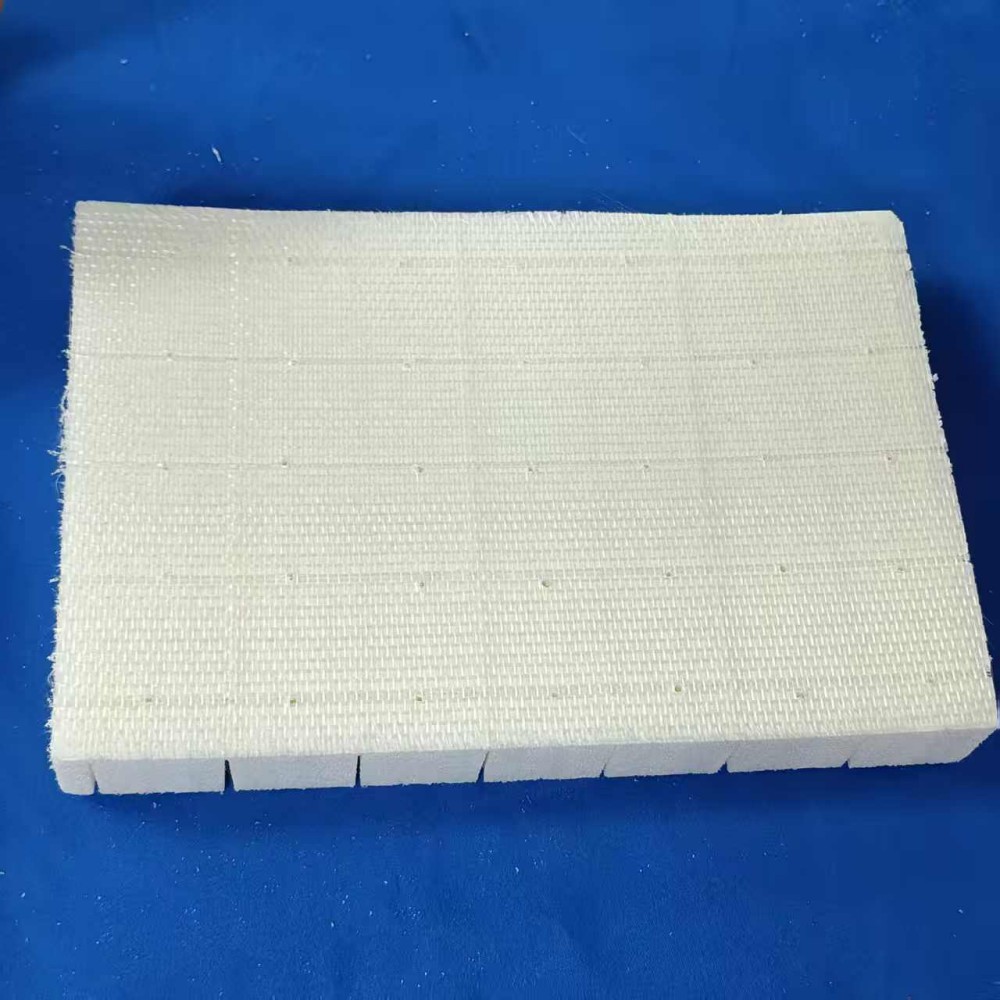

• Grooved sheets
• Double-cut sheets

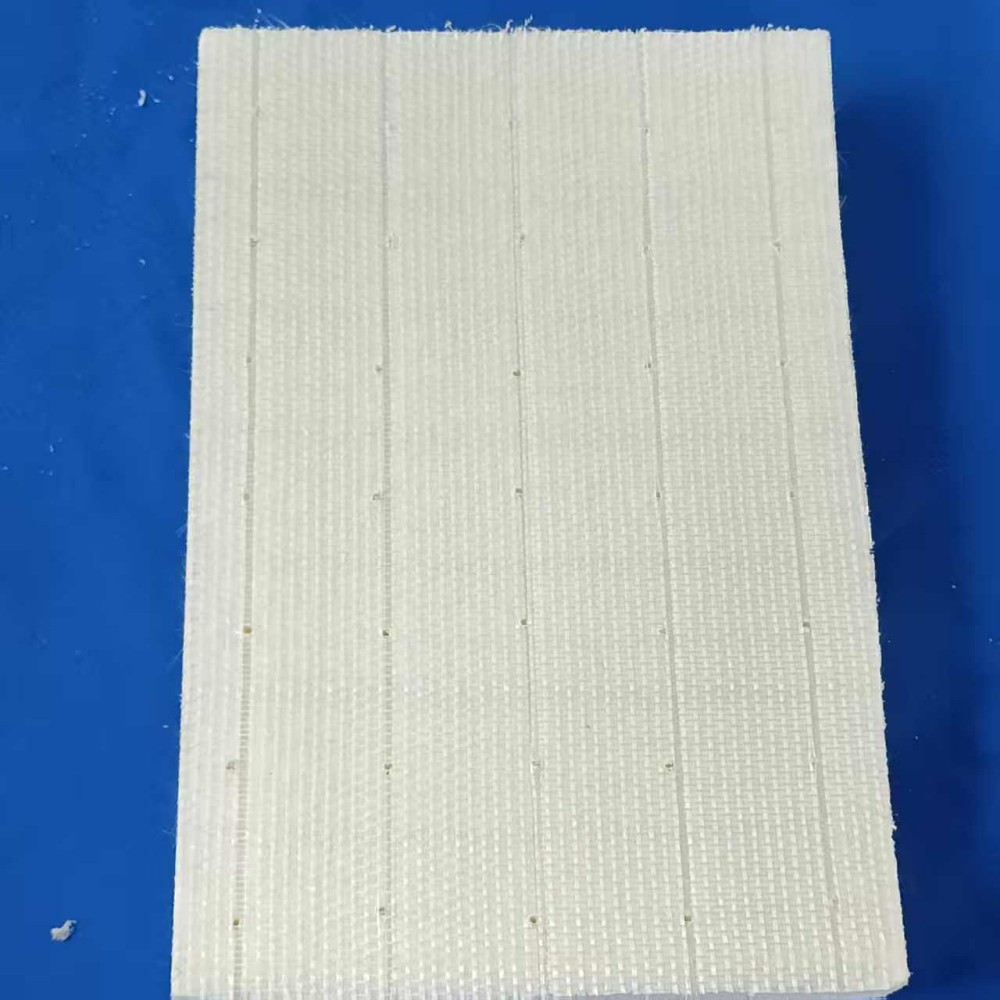

• Scrim-backed blocks

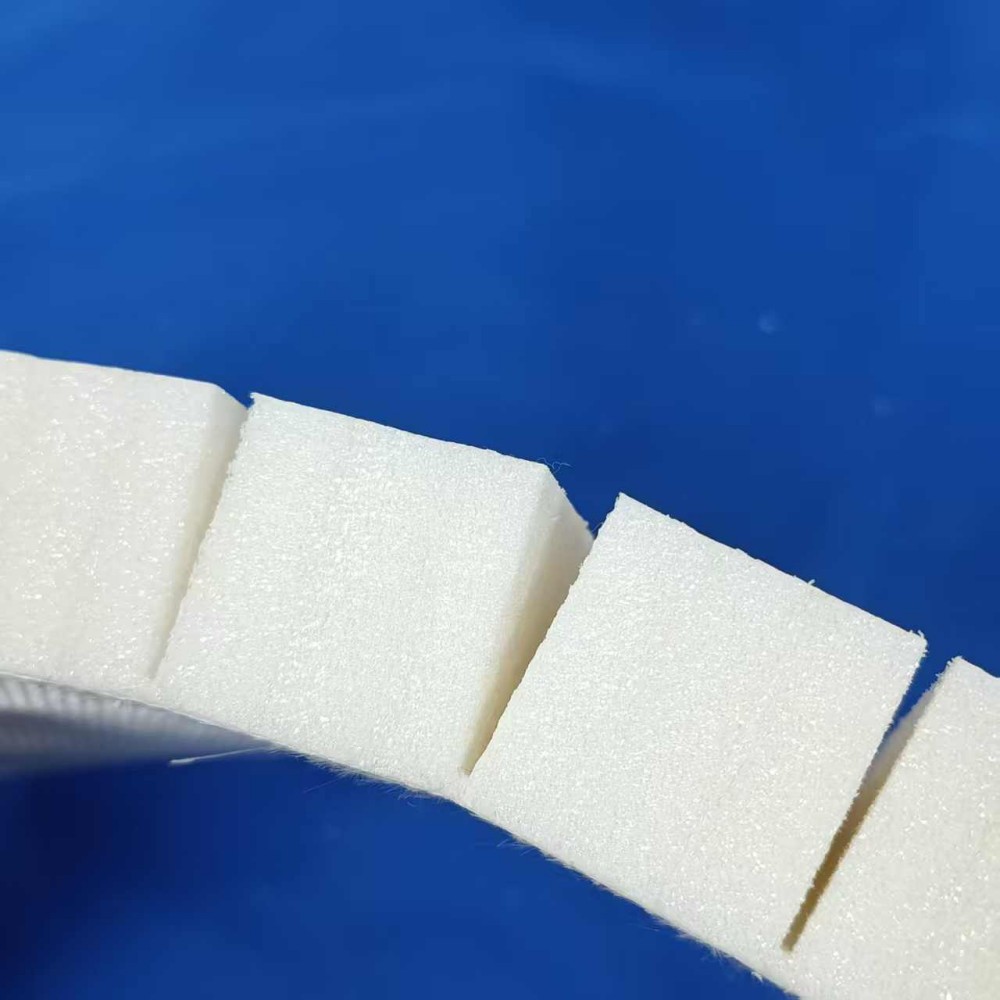

• Contourable panels
• Thermoformed shapes
• CNC-machined parts
These processing options allow manufacturers to adapt PET foam core to flat panels, curved structures and large composite components.
Temperature and Dimensional Performance
Suitable PET foam grades offer useful dimensional stability during manufacturing and in service. This makes PET attractive for processes that may be too demanding for some lower-temperature foams.
Nevertheless, heat-distortion behavior, process temperature, dwell time and panel restraint must all be verified using the grade-specific technical data sheet.
Moisture and Chemical Resistance
Closed-cell PET foam has low water uptake and does not rot. It also offers resistance to many chemicals encountered in transportation, marine and industrial environments.
Compatibility testing is still necessary when the material will have prolonged contact with fuels, solvents, cleaning agents or aggressive chemicals.
Limitations of Recycled PET Foam Core
Mechanical Performance Is Grade-Dependent
PET may not provide the same strength-to-weight ratio, damage tolerance or fatigue performance as a high-performance PVC, SAN or PMI foam core at a comparable density.
However, general statements can be misleading because modern high-performance PET grades may differ substantially from standard PET foam. Designers must compare actual shear strength, compressive strength, tensile strength, fatigue performance and creep data.
Density alone is not sufficient for selecting a structural foam core.
Resin Uptake Can Increase Weight and Cost
Open surface cells, cuts, grooves and perforations can absorb resin during vacuum infusion. Excessive resin uptake increases finished panel weight and material cost.
Foam formulation, cell size, surface treatment and conversion pattern all influence resin consumption. A lower-priced core can become more expensive in the finished part if it absorbs significantly more resin.
Buyers should therefore compare total installed cost rather than only the price per cubic meter.
Processing Temperature Has Limits
Although PET foam can offer good temperature resistance, it is not suitable for every high-temperature prepreg or cure cycle.
Heat, pressure and time may cause softening, shrinkage or surface distortion if the wrong grade is used. Production trials should reproduce the maximum part thickness, heating rate, vacuum or pressure level and dwell time of the actual process.
Creep and Local Loads Need Attention
Long-term compressive loads can cause creep, especially at elevated service temperatures. Fasteners, hinges, inserts and equipment mounts also create concentrated stress.
High-density inserts, local potting, additional laminate reinforcement or a denser foam core zone may therefore be necessary.
Fire Compliance Is Not Automatic
PET is an organic polymer and can burn. Fire-retardant PET foam grades are available, but compliance depends on the complete sandwich construction and the applicable test method.
A fire test result for the raw foam core should not be used as a substitute for certification of the finished panel.
Recyclability of the Finished Sandwich Is Complex
A PET core may be recyclable before lamination, but separating it from thermoset skins and adhesives can be technically or economically difficult.
End-of-life claims should therefore reflect the recycling infrastructure actually available in the target market. Using recycled PET content provides an immediate circularity benefit, but it does not automatically create a closed-loop composite component.
How to Select the Right PET Foam Core
Start with the component requirements rather than a preferred density. Before selecting a recycled PET foam core, define:
• Application and load conditions
• Required density and thickness
• Manufacturing process
• Resin and adhesive system
• Maximum processing temperature
• Service temperature and environment
• Fire or classification requirements
• Required conversion format
• Recycled-content documentation
• Annual volume and delivery requirements
• Dimensional tolerances
• Target total panel cost
The target density and thickness should ideally be based on structural calculation and testing rather than purchasing habits or a direct one-to-one replacement of another core material.
A successful production trial should measure not only the cured panel’s strength, but also infusion time, resin consumption, surface quality, dimensional accuracy and total panel weight.
Recycled PET Foam Core vs. PVC Foam Core
PET and PVC foam are both widely used structural core materials, but neither is universally better.
PET foam often provides a strong combination of recycled content, cost effectiveness, temperature capability and large-volume availability. It is especially attractive in wind energy, transportation and industrial sandwich panels.
PVC foam frequently offers better mechanical properties per unit weight and can be preferred for weight-critical or highly loaded marine structures. It also has a long history in demanding composite applications.
The final decision should compare equivalent qualified grades—not generic material names.
In some products, using more than one core material is the best solution. PET foam may be used across large panel areas, while higher-density PET, PVC foam or solid inserts reinforce local load zones.
Why Source Recycled PET Foam Core from JLON?
JLON works with composite manufacturers in marine, wind energy, transportation and industrial markets.
Rather than recommending one standard PET foam sheet for every project, JLON helps match the core density, thickness, processing format and documentation to the customer’s actual manufacturing conditions.
JLON support can include:
• Standard and customized PET foam sheets
• PET and PVC foam core options
• Grooved PET foam
• Perforated PET foam
• Contourable PET foam panels
• Cut-to-size core materials
• Application-specific conversion
• Processing compatibility review
• Samples and technical data
• Relevant certification documents
• Combined supply with fiberglass materials
• Vacuum infusion consumables
Customers should provide drawings, annual demand, target density, thickness, manufacturing process, resin system, temperature cycle and required certification. JLON can then recommend a more accurate and commercially practical PET foam core solution.
Frequently Asked Questions
Is recycled PET foam core suitable for structural applications?
Yes. Structural PET foam is used as a load-transferring core in composite sandwich panels. Its suitability depends on grade, density, thickness, loads, fatigue, temperature and the design of the complete panel.
Is PET foam core made from 100% recycled PET?
Some grades use up to 100% recycled PET feedstock, while others use a mixture of recycled and virgin material.
The declared percentage and whether the material comes from post-consumer or post-industrial sources should be confirmed for the exact product grade.
Is PET foam core waterproof?
Closed-cell PET foam has low water absorption, but “waterproof” is too broad a claim for a complete component.
Edges, drilled holes, inserts, joints and damaged skins must be properly sealed, especially in marine or permanently humid environments.
Can recycled PET foam replace balsa or PVC directly?
Not automatically. A redesign or structural verification may be necessary because shear, compression, tensile, fatigue and resin-uptake behavior differ between materials.
Manufacturers should compare actual grade data and validate the finished sandwich panel before changing the core material.
Is recycled PET foam always more sustainable?
Recycled content generally reduces demand for virgin polymer and creates value for recovered PET. However, the overall environmental impact depends on feedstock source, manufacturing energy, transport, resin consumption, product life and end-of-life treatment.
The best comparison should use product-specific carbon-footprint or life-cycle data where available.
Conclusion
In 2026, recycled PET foam core is a proven structural material—not simply an environmental claim.
It supports lightweight sandwich construction in wind turbine blades, transportation panels, marine components, construction systems and industrial equipment. Its recycled content, thermoplastic nature, processing versatility and scalable supply make it an increasingly important composite core material.
Its limitations are equally important. Resin uptake, grade-dependent mechanical properties, processing-temperature limits, creep, fire compliance and end-of-life separation must be evaluated honestly.
The best result comes from selecting a qualified PET foam grade for a clearly defined application and validating the complete sandwich structure.
Contact JLON for recycled PET foam core sheets, converted core formats, samples and application-based material selection. Please include your required density, thickness, dimensions, manufacturing process, resin system, quantity and certification requirements in your inquiry.
