Marine insulation plays a critical role in shipbuilding, affecting fire safety, thermal efficiency, acoustic comfort, vessel weight, and long-term maintenance. Selecting the right insulation material is particularly important for commercial vessels, naval ships, offshore platforms, and passenger vessels operating under demanding marine conditions.
Two widely considered insulation materials are polyimide foam (PI foam) and mineral wool, including rock wool and glass wool. Both materials provide thermal and acoustic insulation, but they differ significantly in density, fire performance, moisture behavior, installation requirements, and overall cost.
Polyimide foam has attracted interest as a lightweight alternative to traditional marine insulation materials. Its low density, flexible structure, and thermal and acoustic properties make it suitable for evaluation in selected marine applications.
JLON supplies polyimide foam insulation materials for marine, aerospace, transportation, and industrial applications, supporting customers with material selection, technical specifications, and customized requirements.
This article compares polyimide foam and mineral wool to help shipbuilders, marine insulation contractors, and engineering companies select suitable materials for their projects.
What Is Polyimide Foam for Marine Insulation?
Polyimide foam is a lightweight polymer-based insulation material manufactured from polyimide chemistry. It is known for its thermal stability, low density, and acoustic absorption characteristics.
Unlike structural PVC foam core, PET foam core, or PMI foam used in composite sandwich panels, flexible polyimide foam is primarily designed for non-structural thermal and acoustic insulation.
Marine polyimide foam can be considered for applications where weight reduction, insulation efficiency, and installation flexibility are important.
Key Properties of Marine Polyimide Foam
Lightweight Structure: Polyimide foam is available in very low-density grades, making it attractive for marine applications where insulation weight must be minimized.
Thermal Insulation: Its cellular structure helps reduce heat transfer through insulated surfaces, supporting temperature management in marine compartments and equipment.
Acoustic Absorption: Flexible PI foam can absorb sound energy, making it suitable for selected noise-control applications.
Fire Performance: Certain polyimide foam formulations provide favorable flame resistance and smoke characteristics under specified testing conditions.
Installation Flexibility: Flexible grades can be cut and shaped to fit curved surfaces, ventilation ducts, and irregular equipment geometries.
Low Dust Generation: Suitable PI foam products generally generate less fibrous dust during handling than conventional mineral wool insulation.
Actual performance depends on the selected foam grade, density, thickness, temperature exposure, and installation conditions.
Typical Marine Applications of PI Foam
Polyimide foam insulation can be considered for ship bulkheads, overheads, marine HVAC systems, ventilation ducts, pipe insulation, equipment enclosures, accommodation spaces, and selected offshore applications.
Its lightweight and flexible characteristics may be particularly useful in complex marine installations where handling and available space are important considerations.
Is Polyimide Foam a Structural Marine Core Material?
No. Flexible polyimide foam used for insulation is generally a non-structural material.
It should not be confused with structural foam cores used in composite sandwich construction.
JLON supplies different foam materials for different engineering purposes. Polyimide insulation foam is primarily used for thermal and acoustic insulation, while PVC, PET, and PMI structural foam cores are selected according to mechanical and sandwich construction requirements.
What Is Mineral Wool for Ship Insulation?
Mineral wool is an inorganic fibrous insulation material manufactured from mineral or glass-based raw materials.
The two major categories are rock wool and glass wool. Both are used in marine insulation systems, although their mechanical, thermal, acoustic, and fire performance characteristics vary.
Mineral wool is commonly supplied as blankets, boards, slabs, and pipe sections.
Why Mineral Wool Is Widely Used in Shipbuilding
Mineral wool has been used extensively in marine construction because of its high-temperature resistance, thermal insulation performance, acoustic absorption, and established fire protection applications.
Suitable mineral wool products are commonly incorporated into approved marine fire-rated assemblies, including certain A-class and other fire-rated divisions.
Its relatively low material cost and widespread availability also make it an economical choice for many conventional marine insulation projects.
Limitations of Mineral Wool in Marine Applications
Although mineral wool offers significant advantages, it may present challenges in certain installations.
Depending on the selected product, mineral wool can have a substantially higher density than flexible PI foam. This difference may increase the total weight of large insulation installations.
Cutting and handling mineral wool may release fibers and dust, requiring appropriate installation procedures and personal protective equipment.
Mineral wool insulation systems also require careful moisture protection. Water intrusion can reduce thermal efficiency, increase insulation weight, and create conditions that promote corrosion on adjacent metal surfaces.
Does Mineral Wool Absorb Water?
Moisture behavior varies among mineral wool products.
Some marine mineral wool grades are treated to resist water penetration, while others may retain moisture within the insulation system.
The performance of mineral wool in humid environments should therefore be evaluated using the specific product datasheet and the complete insulation assembly design.
Polyimide Foam vs Mineral Wool: Key Performance Comparison
Polyimide foam and mineral wool offer different advantages depending on the marine application.
Property | Polyimide Foam | Mineral Wool |
Material structure | Lightweight polymer foam | Inorganic fibrous insulation |
Typical density | JLON flexible PI foam: 5–32 kg/m³ | Often 40–150 kg/m³ |
Thermal insulation | Low thermal conductivity | Low thermal conductivity |
Fire performance | Grade-dependent flame resistance | Non-combustible grades available |
Acoustic performance | Good sound absorption | Good sound absorption |
Moisture behavior | Depends on foam structure | Depends on fiber treatment |
Installation | Lightweight and flexible | Established blanket and board systems |
Dust generation | Generally low | Fibers may be released during cutting |
Material cost | Generally higher | Generally lower |
Main advantage | Weight reduction | Fire protection and cost efficiency |
The values and characteristics shown are indicative. Actual performance must be confirmed using the technical data of the selected material.
Weight Reduction and Density
Weight reduction is one of the most important advantages of flexible polyimide foam.
JLON offers flexible polyimide foam in density ranges including 5–6 kg/m³, 6–10 kg/m³, 10–15 kg/m³, and 15–32 kg/m³.
These densities can be significantly lower than those of conventional marine mineral wool products.
For example, consider an insulation installation covering 1,000 m² with a thickness of 50 mm.
Material | Assumed Density | Insulation Weight |
Polyimide Foam | 10 kg/m³ | 500 kg |
Mineral Wool | 80 kg/m³ | 4,000 kg |
Potential Weight Saving | — | 3,500 kg |
This example demonstrates the potential weight difference between two insulation materials with different densities.
The calculation excludes adhesives, facings, supports, and other installation components.
Why Does Insulation Weight Matter on Ships?
Reducing unnecessary insulation weight can contribute to vessel weight optimization.
On commercial vessels, naval ships, and offshore installations, insulation may cover extensive areas of bulkheads, overheads, piping, and ventilation systems.
A reduction in insulation weight may provide additional flexibility in vessel design and weight distribution.
However, material substitution must not compromise mandatory fire safety or structural requirements.
Thermal Insulation Performance
Both polyimide foam and mineral wool can provide effective thermal insulation.
JLON's published flexible PI foam technical information indicates thermal conductivity of no more than 0.04 W/(m·K) under specified room-temperature testing conditions.
Marine mineral wool products commonly offer thermal conductivity values in a similar general range, depending on density, formulation, and temperature.
Therefore, polyimide foam should not automatically be considered a better thermal insulator simply because it has a lower density.
Thermal insulation performance should be compared using conductivity values measured under equivalent conditions.
Can Polyimide Foam Replace Mineral Wool at the Same Thickness?
Possibly, depending on the thermal requirements.
When two insulation materials have comparable thermal conductivity, they may provide similar nominal thermal resistance at equal thickness.
However, operating temperature, moisture exposure, compression, and installation quality can affect actual performance.
JLON recommends evaluating the technical data of the proposed PI foam grade before selecting an equivalent insulation thickness.
Fire Safety: Is Polyimide Foam Better Than Mineral Wool?
Fire safety is one of the most important considerations in marine insulation selection.
Polyimide foam and mineral wool have different fire performance characteristics, and neither material should be selected solely on general descriptions such as fire-resistant or flame-retardant.
Fire Performance of Polyimide Foam
Certain polyimide foam formulations offer favorable flame resistance, self-extinguishing characteristics, and relatively low smoke generation under specified testing conditions.
JLON's published flexible PI foam technical information includes a limiting oxygen index of at least 32% for the stated grades.
These characteristics make PI foam a potential candidate for selected marine insulation applications where controlled fire behavior and low weight are important.
However, flame resistance does not automatically mean non-combustibility.
A polymer-based insulation material should not be considered equivalent to non-combustible mineral wool without appropriate testing and regulatory acceptance.
Fire Performance of Mineral Wool
Mineral wool, particularly suitable rock wool grades, is widely used in marine fire protection systems.
Its inorganic composition and high-temperature resistance make it suitable for many applications requiring non-combustible insulation.
Approved mineral wool systems are frequently used in fire-rated bulkheads, decks, and machinery-space boundaries.
However, not every mineral wool product is automatically approved for every marine fire protection application.
The relevant certification, facing materials, adhesives, installation configuration, and complete assembly must be considered.
IMO FTP Code and Marine Insulation Certification
Marine insulation materials may need to satisfy requirements established under the International Maritime Organization's Fire Test Procedures Code.
The applicable tests depend on the intended application and regulatory requirements.
IMO FTP Code Part 1 – Non-Combustibility: Evaluates whether a material meets the relevant non-combustibility criteria.
IMO FTP Code Part 2 – Smoke and Toxicity: Evaluates smoke generation and toxic gas characteristics under specified testing conditions.
IMO FTP Code Part 3 – Fire Resistance: Addresses fire resistance testing of A-, B-, and F-class divisions.
IMO FTP Code Part 5 – Surface Flammability: Evaluates surface flame-spread characteristics of applicable materials.
A material may need different testing and approvals depending on whether it is used as exposed insulation, part of an interior system, or within a fire-rated structural division.
Can PI Foam Be Used in A-Class Bulkheads?
Only when the proposed installation meets the applicable fire protection requirements and has the necessary approvals.
Passing a material-level flame or smoke test does not establish approval of a complete A-class bulkhead assembly.
For fire-rated structural divisions, the complete insulation system and relevant non-combustibility requirements must be considered.
Shipbuilders should confirm the acceptability of any proposed substitution with the classification society, flag administration, or authorized approval body.
Acoustic Insulation: PI Foam vs Mineral Wool
Noise control is another important consideration in shipbuilding.
Marine vessels may require acoustic treatment around machinery spaces, ventilation systems, technical compartments, and accommodation areas.
Both flexible polyimide foam and mineral wool can absorb sound energy, although performance depends on density, thickness, frequency, and installation conditions.
Acoustic Performance of Polyimide Foam
Flexible polyimide foam can provide sound absorption through its cellular structure.
JLON's published technical information lists a noise reduction coefficient of at least 0.6 for its flexible PI foam range under specified test conditions.
This indicates useful sound absorption characteristics for selected acoustic applications.
Polyimide foam may be considered for marine HVAC duct insulation, equipment enclosures, and other non-structural acoustic treatments.
Acoustic Performance of Mineral Wool
Mineral wool is a widely established acoustic insulation material.
Its fibrous structure helps absorb sound energy, making it suitable for bulkhead cavities, acoustic panels, and machinery enclosures.
Depending on the grade and thickness, mineral wool may provide excellent broadband sound absorption.
Which Material Is Better for Marine Noise Reduction?
Neither material is universally superior.
For sound absorption applications, the appropriate comparison should use measured absorption coefficients at the relevant frequencies.
For sound transmission reduction, the complete insulation assembly must be evaluated.
A lightweight sound absorber does not necessarily provide the same sound-blocking performance as a heavier acoustic barrier system.
Moisture Resistance and Long-Term Maintenance
Marine insulation systems are exposed to humidity, condensation, vibration, and occasional water intrusion.
Moisture behavior can influence insulation efficiency, material durability, and maintenance requirements.
Polyimide Foam in Humid Marine Environments
JLON's published flexible PI foam technical data includes a moisture absorption result of no more than 5% under a specified high-humidity testing condition.
This information is useful for evaluating insulation performance, but it should not be interpreted as proof that the foam is waterproof.
Depending on its cellular structure and installation conditions, polyimide foam may still require protective facings, suitable adhesives, and appropriate condensation control.
Mineral Wool and Moisture Protection
Marine mineral wool is commonly installed with protective facings or cladding where moisture exposure is expected.
Water entering the insulation system may increase weight, reduce thermal performance, and contribute to corrosion risks on adjacent metallic surfaces.
Proper sealing, vapor control, drainage, and inspection access are therefore important considerations.
Which Material Requires Less Maintenance?
Maintenance requirements depend on the complete insulation system rather than the insulation material alone.
Polyimide foam may simplify handling and replacement in certain applications because of its lightweight and flexible structure.
Mineral wool remains a reliable solution when correctly installed and adequately protected from environmental exposure.
Installation and Handling Differences
Installation efficiency can influence the overall cost of marine insulation projects.
This is particularly relevant in shipyards where insulation must be installed around complex geometries and within confined spaces.
Installing Flexible Polyimide Foam
Flexible polyimide foam can be cut and shaped to fit irregular surfaces, curved ducts, and equipment enclosures.
Its low density makes individual insulation sections easier to handle and position.
Suitable PI foam grades may also generate less airborne fibrous dust during cutting than conventional mineral wool.
These characteristics can be useful for shipbuilding contractors seeking lightweight and adaptable insulation materials.
Installing Mineral Wool
Mineral wool is available in established marine insulation formats, including blankets, boards, and pipe sections.
These products can be installed using mechanical supports, fasteners, and protective facing systems.
Mineral wool installation practices are well established in the shipbuilding industry.
However, appropriate handling procedures and protective equipment should be used when cutting or installing fibrous insulation materials.
Does PI Foam Reduce Installation Cost?
Polyimide foam may reduce certain handling and installation expenses, but cost savings should not be assumed.
The total installed cost depends on material price, labor, cutting waste, mechanical supports, adhesives, protective facings, certification requirements, and maintenance.
For some marine projects, mineral wool may remain the more economical solution.
Best Marine Applications for Polyimide Foam and Mineral Wool
Material selection should begin with the intended insulation location and its technical requirements.
Bulkheads and Overheads
Polyimide foam may be considered for non-structural thermal and acoustic insulation in selected bulkhead and overhead applications.
Its lightweight structure can be beneficial where insulation mass is an important design consideration.
Mineral wool is commonly preferred where an established non-combustible or fire-rated insulation system is required.
HVAC Ducts and Ventilation Systems
Flexible PI foam can be attractive for marine HVAC insulation because of its low weight and ability to conform to different shapes.
Mineral wool also provides established thermal and acoustic insulation solutions for ventilation systems.
Selection should consider airflow exposure, surface protection, condensation, cleaning requirements, and applicable fire safety standards.
Pipes and Equipment Insulation
Polyimide foam may be evaluated for selected pipe wraps and equipment insulation where the operating temperature is within the material's validated service range.
Mineral wool remains widely used for high-temperature pipes, industrial equipment, and exhaust-related insulation systems.
For very high-temperature applications, suitable mineral wool products may offer a significant advantage.
Naval and Specialized Marine Vessels
Naval ships and specialized vessels may place additional emphasis on weight reduction, smoke behavior, acoustic performance, and installation flexibility.
Polyimide foam can be considered where its tested properties meet the project specification.
Mineral wool remains important for applications requiring established non-combustible insulation and approved fire protection systems.
Where Should Polyimide Foam Not Replace Mineral Wool?
Polyimide foam should not be substituted directly where the design requires a specific non-combustible insulation material, an approved fire-rated assembly, or operating temperatures beyond the foam's validated service limits.
Any material substitution must be evaluated against the actual marine engineering specification and applicable approval requirements.
Cost Comparison: Initial Price vs Total Installed Cost
Mineral wool generally has a lower initial material cost than high-performance polyimide foam.
However, the lowest material purchase price does not always represent the lowest total installed cost.
A complete cost comparison should consider the following factors.
1. Material Cost: Compare the price per square meter at the required insulation thickness and performance level.
2. Installation Labor: Evaluate cutting, handling, fitting, and installation time for each material.
3. Mounting Components: Include adhesives, mechanical supports, protective facings, and other installation materials.
4. Fabrication Waste: Consider material waste generated during cutting and fitting, especially around irregular surfaces.
5. Insulation Weight: Evaluate the potential effect of insulation mass on vessel design and weight distribution.
6. Maintenance Requirements: Consider moisture protection, inspection access, replacement frequency, and long-term maintenance.
7. Certification Costs: Include any additional testing, engineering review, or approval requirements associated with a proposed material substitution.
For standard marine insulation applications with established mineral wool systems, mineral wool may offer the best overall value.
For weight-sensitive or installation-sensitive projects, polyimide foam may justify its higher initial purchase price if the engineering and commercial benefits can be demonstrated.
How to Select the Right Marine Insulation Material
Before choosing between polyimide foam and mineral wool, shipbuilders and insulation contractors should establish the relevant technical requirements.
Confirm the Operating Conditions
Important considerations include normal and maximum operating temperatures, required thermal resistance, humidity exposure, vibration, and available installation space.
These conditions influence both material selection and insulation thickness.
Review Fire and Classification Requirements
Determine whether the application requires non-combustibility, smoke and toxicity testing, surface flame-spread performance, or approval as part of a fire-rated assembly.
The applicable requirements should be confirmed before selecting or substituting insulation materials.
Compare Technical Data at Equal Conditions
Thermal conductivity, acoustic absorption, density, and fire performance should be compared using relevant test methods and equivalent conditions.
General material descriptions are not sufficient for engineering approval.
Evaluate Installation and Project Economics
Consider the complete insulation system rather than the material purchase price alone.
The evaluation should include installation labor, protective components, maintenance requirements, and any additional approval costs.
What Information Should Be Provided to JLON?
For a marine polyimide foam inquiry, customers should provide the vessel type, application location, insulation thickness, operating temperature, required fire standards, expected quantity, and applicable classification society.
These details help JLON identify suitable polyimide foam grades and determine which technical documents should be reviewed.
Why Choose JLON for Marine Polyimide Foam?

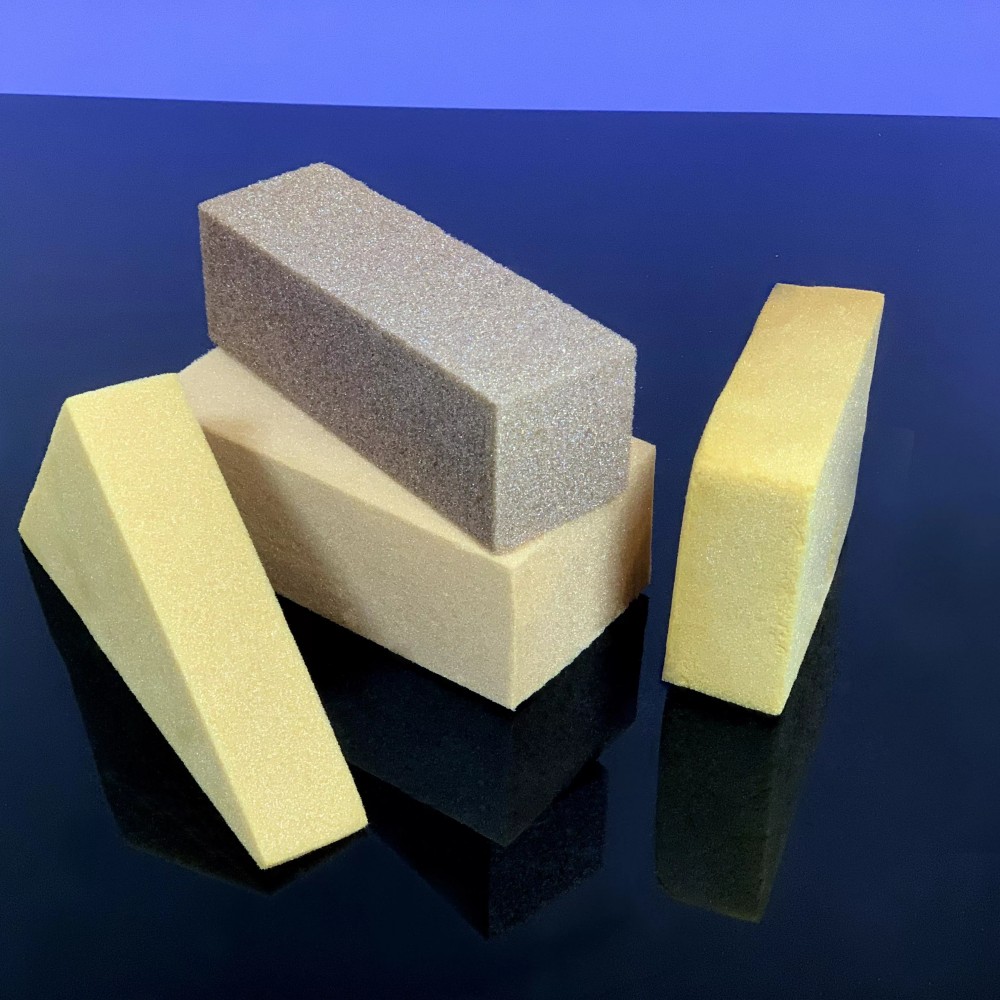

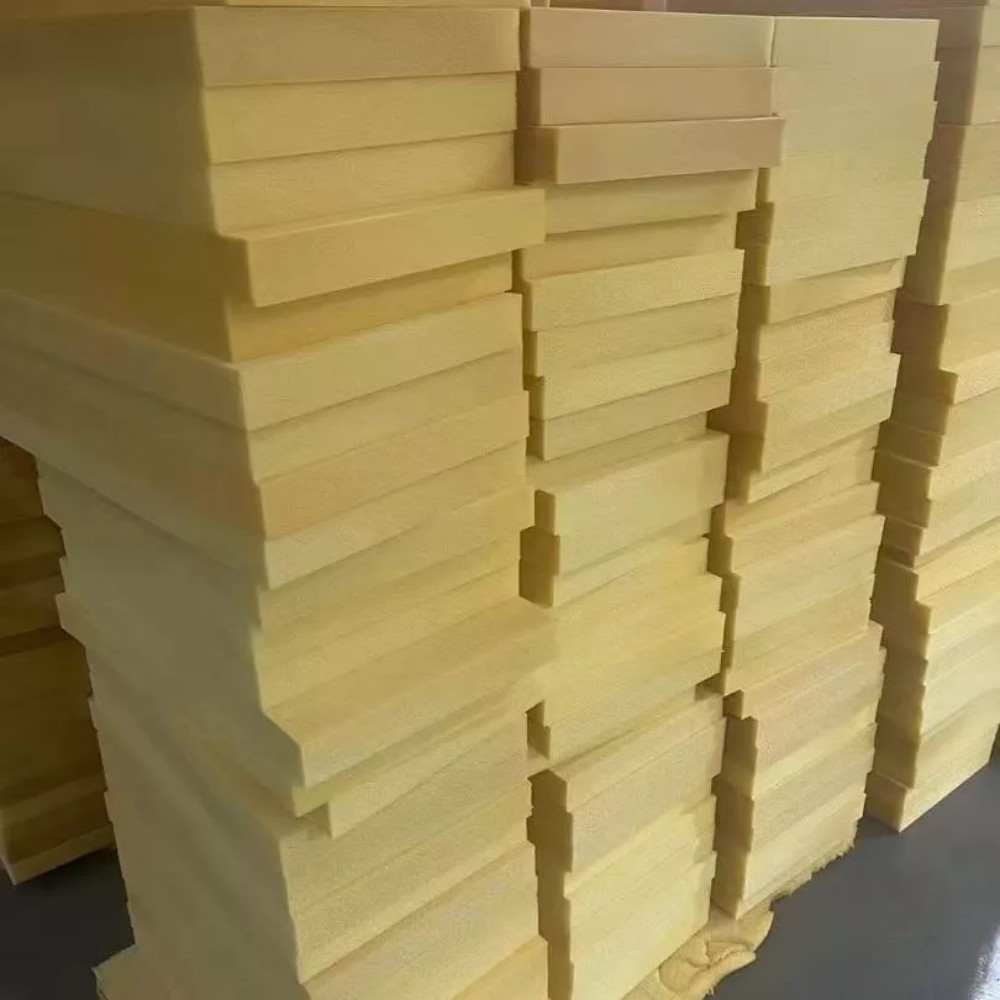

JLON supplies flexible polyimide foam insulation materials for marine, aerospace, transportation, and industrial applications.
For marine projects, JLON focuses on matching the material grade to the required insulation function, installation conditions, and technical specifications.
Available flexible PI foam density ranges include 5–6 kg/m³, 6–10 kg/m³, 10–15 kg/m³, and 15–32 kg/m³.
Different grades offer options for lightweight thermal and acoustic insulation applications.
JLON can assist customers with product selection, technical datasheets, available dimensions, and customized material requirements in cooperation with its manufacturing partners.
Customers can explore the JLON Polyimide Foam product range for additional technical information.
For applications involving structural composite sandwich construction rather than thermal insulation, JLON also supplies PVC foam core, PET foam core, PMI foam, and honeycomb core materials.
Frequently Asked Questions
Is Polyimide Foam Better Than Mineral Wool for Marine Insulation?
Polyimide foam offers potential advantages in weight reduction, handling, and installation flexibility. Mineral wool often offers advantages in non-combustibility, established marine fire-rated systems, and initial material cost. The better choice depends on the application.
Is Polyimide Foam Fireproof?
Certain polyimide foam formulations provide favorable flame resistance and self-extinguishing characteristics. However, polyimide foam should not automatically be described as non-combustible or fireproof. Relevant test reports and marine approval requirements must be reviewed.
Can Polyimide Foam Be Used for Ship Acoustic Insulation?
Yes. Suitable flexible PI foam grades can provide sound absorption and may be used in selected marine acoustic insulation systems. Actual performance should be confirmed using relevant acoustic test data.
Is PI Foam Lighter Than Rock Wool?
Generally, yes. JLON flexible PI foam grades have published densities of 5–32 kg/m³, which can be substantially lower than many conventional marine rock wool insulation products.
Can Polyimide Foam Replace Mineral Wool in Marine Fire Protection Systems?
Not automatically. Any replacement must satisfy the applicable fire safety requirements and approval conditions. Material-level flame resistance does not establish approval of a complete fire-rated insulation assembly.
Can JLON Supply Customized Polyimide Foam for Shipbuilding?
JLON can support inquiries involving different foam densities, dimensions, and application-specific requirements. Availability and technical suitability depend on the selected grade and manufacturing capabilities.
Conclusion: Choosing Between PI Foam and Mineral Wool
Polyimide foam and mineral wool both have valuable roles in marine insulation.
Mineral wool remains an established choice for high-temperature insulation, non-combustible material requirements, and approved fire protection systems.
Polyimide foam offers an alternative for applications where lightweight construction, thermal insulation, acoustic absorption, and installation flexibility are important.
For shipbuilders and marine insulation contractors, the correct choice depends on operating conditions, fire safety requirements, certification, and total project cost.
JLON provides polyimide foam solutions for marine insulation projects and supports material selection based on specific technical requirements.
Contact JLON to discuss your marine insulation application, request technical data, or evaluate a suitable PI foam grade for your project.
